Tomato Paste / juice Tube In Tube Sterilizing Machine
- Condition:
-
New
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
JUMPFRUITS
- Voltage:
-
380V
- Power:
-
3KW
- Weight:
-
800KG
- Dimension(L*W*H):
-
based on capacity
- Certification:
-
ce
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Field installation, commissioning and training
- Product name:
-
Food uht Tubular Sterilizer
- Function:
-
uht sterilizing
- Material:
-
304 Stainless Steel
- Capacity:
-
500kg/h-10t/h
- Color:
-
Silver
- Application:
-
Food Liquid,dairy,paste
- Sterilizing way:
-
Steam 121C Sterilization
- Heating way:
-
Steam Heating Boiler Electric
- Design Temperature:
-
Customer Requirement
- Control system:
-
SIEMENS Control System
- 20 Set/Sets per Month uht milk sterilizer machine
- Packaging Details
- Stable wooden package protects machine from strike and damage. Wound plastic film keeps machine out of damp and corrosion. Fumigation-free package helps the smooth customs clearance. The big size machine will be fixed in container without package.
- Port
- shanghai, China
- Lead Time :
-
Quantity(Sets) 1 – 1 >1 Est. Time(days) 45 To be negotiated
Machine description:

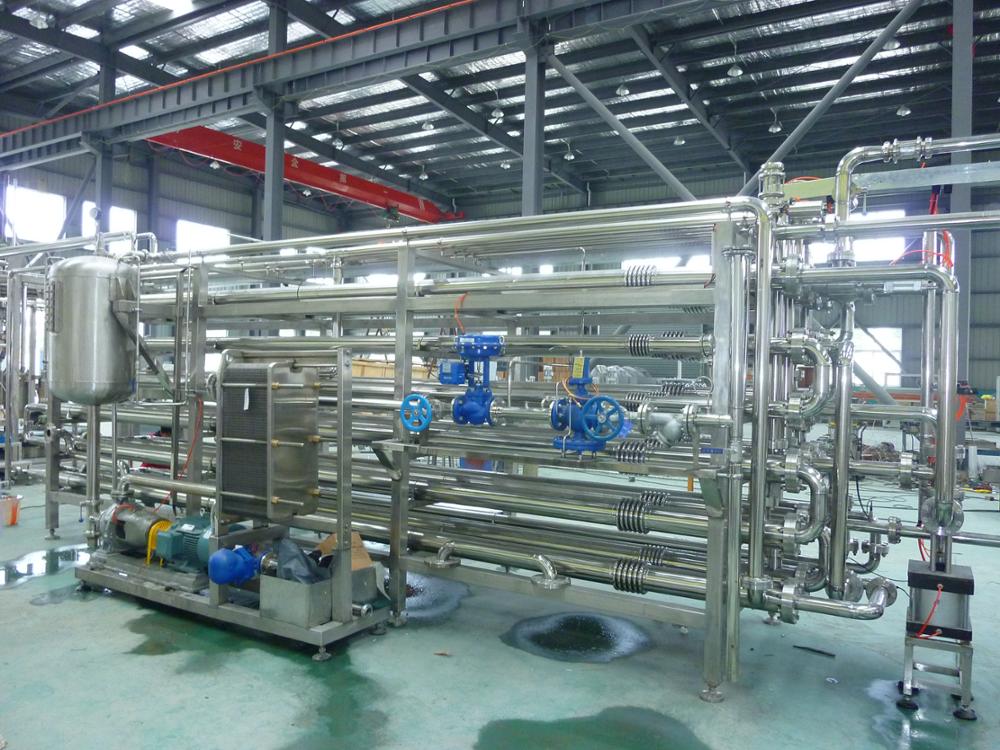

Company has created the advanced sterilizer with tubular type and tube-in-tube structure.This kind of sterilizer is widely used in liquid sterilizing industry, and the tubular type is used for the natural juice,pulp,puree,milk,sauce and other liquid with good fluidity and the tube-in-tube type sterilizer is specially for the tomato paste and other fruit puree concentrate which has high solids and viscosity with not so good fluidity.

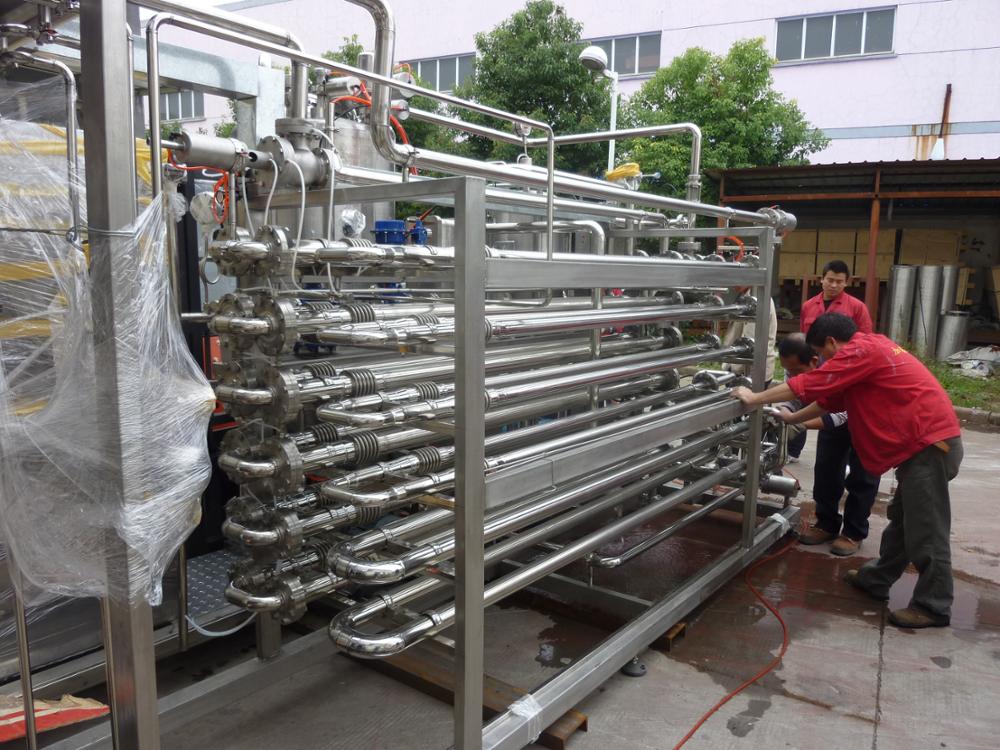

The tube in tube type sterilizer has 4 layers tubular structures, the inner two layers and outside layer will go through with the hot water and middle layer will be running with the product.The product will be heated by the hot water to the setting temp and then hold the product under the temp for few time to completely sterilized the product and then cool down the product by cooling water or chilled water.The sterilizer will be consisting of the product tank,the piston pump,the heat exchanger,the holding and cooling tubes and control system.
1.Main structure with SUS 304 stainless steel
2.Combined Italian technology and conform to Euro-standard.
3.Great heat exchange area,low energy consumption and easy maintenance
4.Adopt mirror welding tech and keep the smooth pipe joint
5.Auto return flow if not enough sterilization
6.Separate control panel,PLC and human machine interface,CIP and SIP available
Specification:
(as an example,customize for different product per customer’s requirement)
Working principle:
1.Put the product from a storage tank mounted for the sterilizer into the heater exchanger unit.
2. Heat the product by superheated water till the sterilizing temp and hold the product under the temp for sterilizing the product ,then cool down into filling temperature by cooling water or chilled water
3.Before each production shift,sterilize in the place system with aseptic filler together by superheater water.
4.After each production shift,clean in place the system with aseptic filler together by hot water,alkali liquid and acid liquid
