Tin Can Capping And Sealing Machine / Tin Can Filling And Labeling Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
5 years
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JUMPFRUITS
Type:
full set equipments
Voltage:
380V
Power:
4.2 KW
Weight:
varied
Dimension(L*W*H):
adjusted based on customized
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
dried fruit processing machine
Production capacity:
0.5-500T/H
Material:
SUS304
Application:
Pineapple
Capacity:
500-30000kg/h
Name:
industrial fruit drying machine
Supply Ability
Supply Ability:
10 Set/Sets per Month dried fruits making machine
Packaging Details
Standard export package.If customer have specail requirement,we will do as customer require
Port
Shanghai Port



1, Performance features:

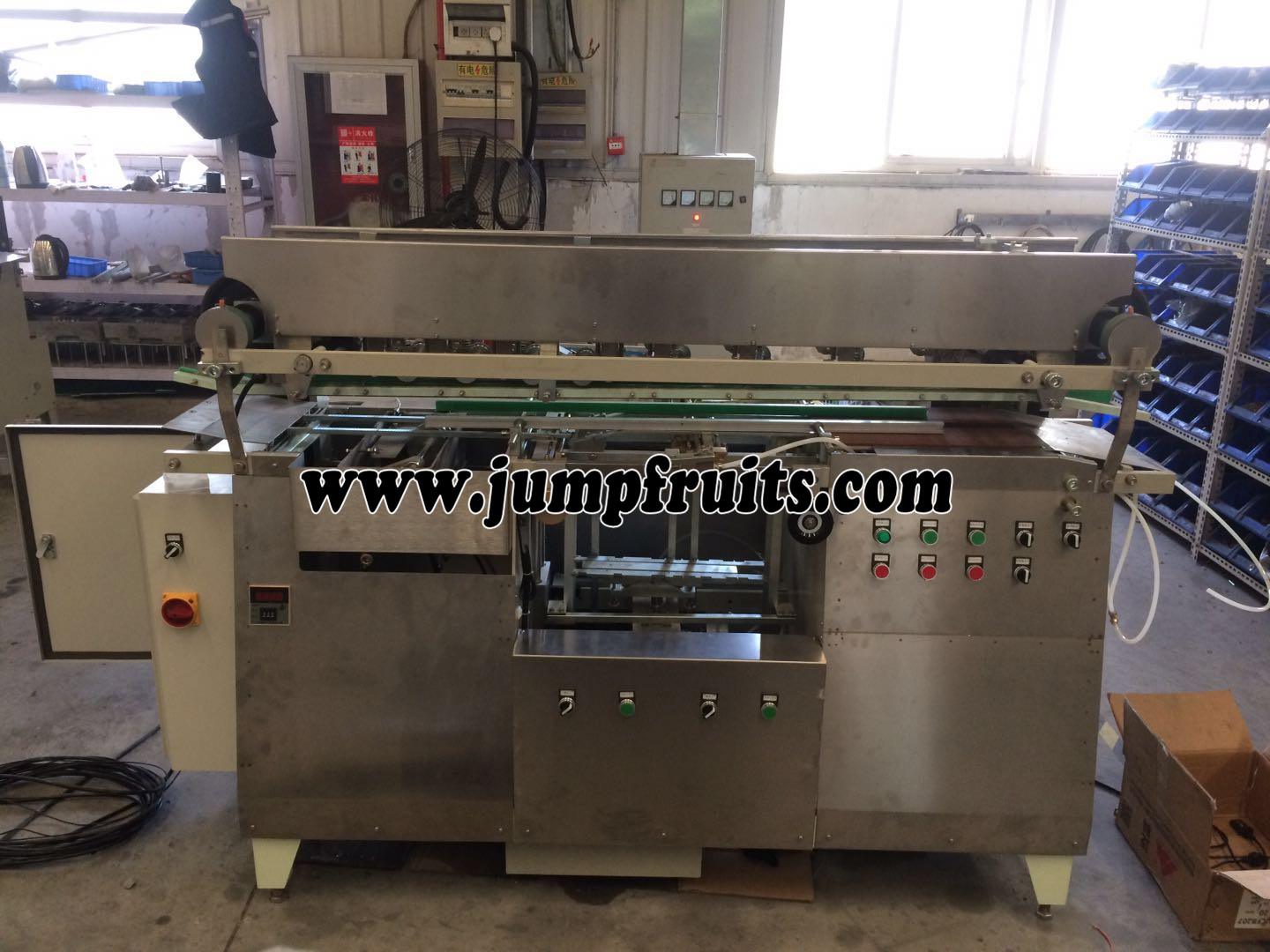

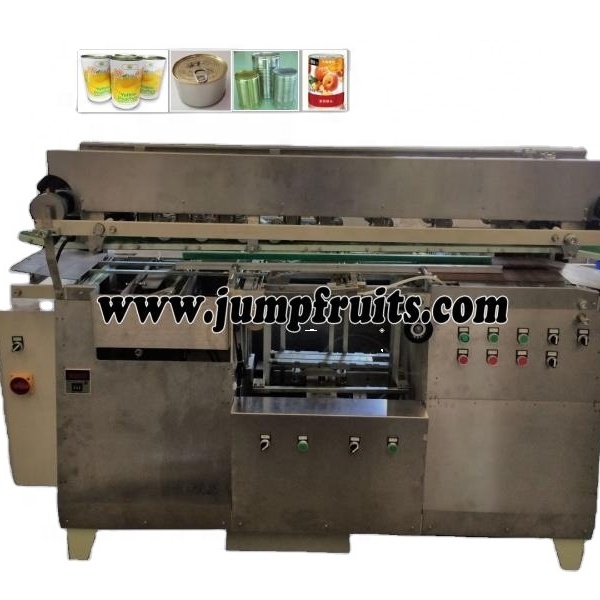

1. The machine is suitable for labeling cans. After the can is rolled into the machine, it is driven to roll by the belt pressed on the can. When the can passes through the heat
At the glue melting station, the cans are coated with hot-melt glue. As the cans move forward, the glue on the cans is pressed to the front of the label,
The label was glued up and began to roll on the can. At the same time, the gluing mechanism at the end of the label also applies glue to the end of the label.
As the can moved on, the label was rolled onto the can. Then the belt is rolled and driven out of the machine.
2. The machine has an alternate supply mechanism, so it does not need to stop when adding the standard.
3. The glue supply at the end is controlled by the can, with glue supplied by can, but not without can.
4. The machine adopts frequency conversion speed regulation, which can be adjusted at any time according to the production needs.
5. The machine is simple to replace the tank type, less replacement parts, only glue at both ends of the label, the amount of glue used is small, and the cost of labeling is low.
2, Suitable range:
1. This machine is a tin can labeling machine, which is suitable for tin can labeling;
2. It can quickly change the size of tinplate can, and the operation is simple, neat, beautiful and clean.
3, Technical parameters:
Labeling capacity: 200-500 cans / min (varies with can size)
Suitable can size: diameter: Φ 40-120mm, height: 250mm
Label size: width: 23-254mm; length: 117-380mm
Label adhesive: hot melt adhesive + quick drying adhesive
Power supply: three phase; 380V (or customized as required)
Electric power: 3kw
Compressed air: 2-4kg / m2; 10 L / min
Overall dimension: length 1856mm × width 750mm × height 1250mm
Weight: 750KG

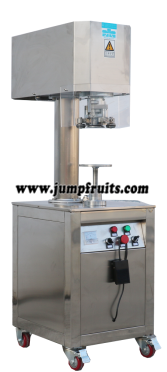

Filling & Sealing Machine Combination
The no tank body contact pneumatic control automatic cover. The liquid filling technology, production capacity is the frequency conversion, more than 95% of the appearance of the material of stainless steel, to ensure the health and beauty of the whole. Equipped with fault alarm system, and the steam jetting device.
Filling range: 170g-1000g
With one kind of model
Number of filling head:8;
sealing heads: 4.
Production capacity: 80-200 cans/min
Motor power: 5.5KW
Weight:4000kg
Outside:2800*1600*1900mm
