Stainless Steel Tomato Paste Sauce Cans Filling And Sealing Packing Machine
- Applicable Industries:
-
Food & Beverage Factory
- Condition:
-
New
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
OEM
- Model Number:
-
JUMP-FQJL
- Type:
-
PROCESSING LINE
- Voltage:
-
220V/380V
- Power:
-
3kw
- Weight:
-
80 TONS
- Dimension(L*W*H):
-
1380*1200*2000mm
- Certification:
-
ISO 9001,CE
- Year:
-
2019
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Field installation, commissioning and training
- Product name:
-
tomato paste filling machine
- Material:
-
304 Stainless Steel
- Name:
-
tomato paste production line
- Application:
-
kinds of jams making
- Function:
-
Multifunctional
- Usage:
-
Industrial Usage
- Capacity:
-
3-5t/h
- Feature:
-
Easy Operation
- Item:
-
Automatic Fruits jams Machine
- Color:
-
Customers’ Requirements
- Supply Ability:
- 3 Set/Sets per Month
- Packaging Details
- 1.Stable wooden package protects machine from strike and damage. 2.Wound plastic film keeps machine out of damp and corrosion.32.Fumigation-free package helps the smooth customs clearance.4.The big size machine will be fixed in container without package.
- Port
- Shnaghai
It adopts PLC control and touch human-machine interface, and the whole machine is easy and intuitive to operate. Standard high-precision electronic scale automatic
Parameters:1. Filling range: 100-500g
2, filling speed: 2000 bottles / hour
3, measurement accuracy: ± 4% g
4, rated voltage: 3 phase 380v
5, rated power: normal operation 3.2Kw, start insulation work
Can the whole machine power: 8.9Kw
6, circuit system: France Schneider + Taiwan Delta
7, working pressure: 0.6 ~ 0.8Mpa
8, machine weight: about 750kg
9, the capacity of the tank: 40 ~ 50L
10, compatible bottle type height range: 80-180mm
11, compatible bottle type width or diameter range: 55-95mm or Φ55-Φ95mm
12, compatible with the smallest bottle type diameter (inner diameter): Φ40mm (special diameter can be customized)
13. Dimensions: (H X W X D):1250×1200×2200mm
Select stainless steel bracket, food-grade and hard plastic or stainless steel scraper, smoothing blade architecture to prevent the fruit jam; Using imported anti-corrosion bearings, double-sided seal; with continuously variable transmission motor, variable frequency Speed and low operating costsTitle goes here.
Stainless steel roller conveyor, rotation and solution, a full range of check, no need ends. Manmade fruit platform, painted carbon steel bracket,stainless steel antiskid pedal,stainless steel fence.
C. Crusher
Fusing Italian technology, multiple sets of cross-blade structure, crusher size can be adjusted according to customer or specific project requirements, it will increase the juice juice rate of 2-3% relative to the traditional structure , which is suitable for production of onion sauce, carrot sauce, pepper sauce , apple sauce and other fruits and vegetables sauce and products
D. Double-stage pulping machine
It have tapered mesh structure and the gap with load can be adjusted, frequency control, so that the juice will be cleaner; Internal mesh aperture are based on customer or specific project requirements to order

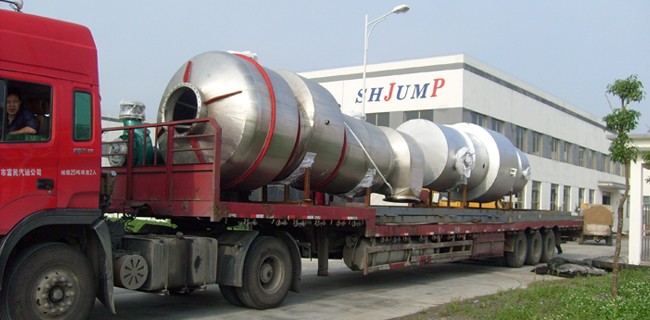

E. Evaporator
Single-effect, double-effect,triple-effect and multi-effect evaporator, which will save more energy; Under vacuum, continuous low temperature cycle heating to maximize the protection of nutrients in the material as well as the originals. There are steam recovery system and double times condensate system, it can reduce the consumption of steam;
F. Sterilization machine
Having obtained nine ed technology, take full advantages of the material’s own heat exchange to save energy– about 40%

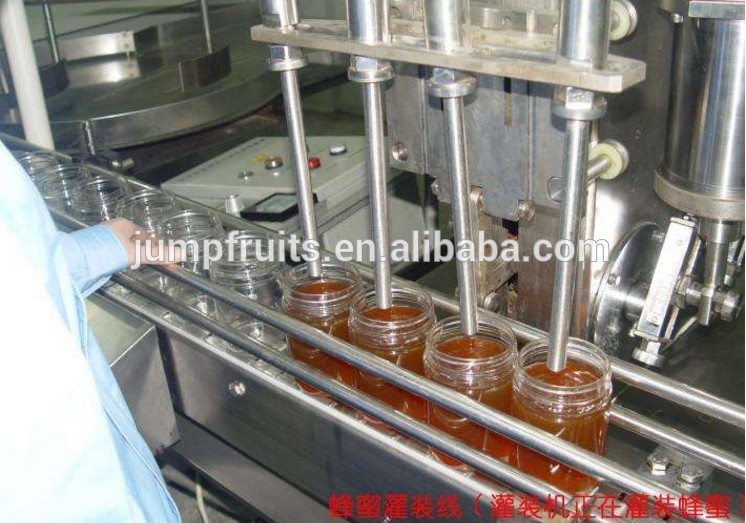

F. Filling machine
Adopt Italian technology, sub-head and double-headed, continuous filling, reduce return; Using steam injection to sterilize, to ensure filling in aseptic state , the shelf life of product will twp years at room temperature ; In the filling process,using turntable lifting mode to avoid secondary pollution.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory,pickup service.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1.What is the warranty period of the machine?
One year. Except the wearing parts, we will provide free maintenance service for the damaged parts caused by normal operation within warranty. This warranty does not cover wear and tear due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided.
2.What service can you provide before sales?
Firstly, we can supply the most suitable machine according to your capacity. Secondly, After getting your workshop dimension, we can design the workshop machine layout for you. Thirdly, we can provide technical support both before and after sales.
3.How can you guarantee the after sales service?
We can send engineers to guide the installation, commissioning, and training according to the service agreement we signed.
