Small Manual Paste / Cream / Lotion / Liquid Filling Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Packaging Material:
Glass, metal, plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Food, Machinery & Hardware, MEDICAL
Packaging Type:
Bottles
Automatic Grade:
Manual
Driven Type:
Manual
Voltage:
220V
Power:
0.75KW
Place of Origin:
Shanghai, China
Brand Name:
JUMPFRUITS
Model Number:
JP-MFA03
Dimension(L*W*H):
300*400*1200MM
Weight:
30kg
Certification:
ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Small Manual Paste / cream / lotion / oil / liquid filling machine
Function:
Filling
Name:
Filling material:
Flowing Liquid
Usage:
Plastic Packaging
Processing Types:
Normal Pressure Filling
Material:
SUS304
Bottle type:
Round Bottle
Warranty:
One Year
Capacity:
0-20 bottles/ min (5-50ml/bottle)
Supply Ability
Supply Ability:
50 Set/Sets per Month Manual Liquid Filling Machine
Packaging & Delivery
Packaging Details
Carton
Port
Shanghai
Lead Time :
5 days after receiving the payment
Product Description

Manual / semi-automatic paste / oil / cream / lotion / liquid filling machine

Main Specification

1. This manual / semi-automatic paste / oil / cream / lotion / liquid filling machine series application to food, medicine, cosmetic,oil, such as paste,sauce,liquid,cream filling

2. The hopper of manual paste filling machine also can be install mixing or heating functions for meet the customere prduction requests.

3. The unique vertical design, save the space of the share.

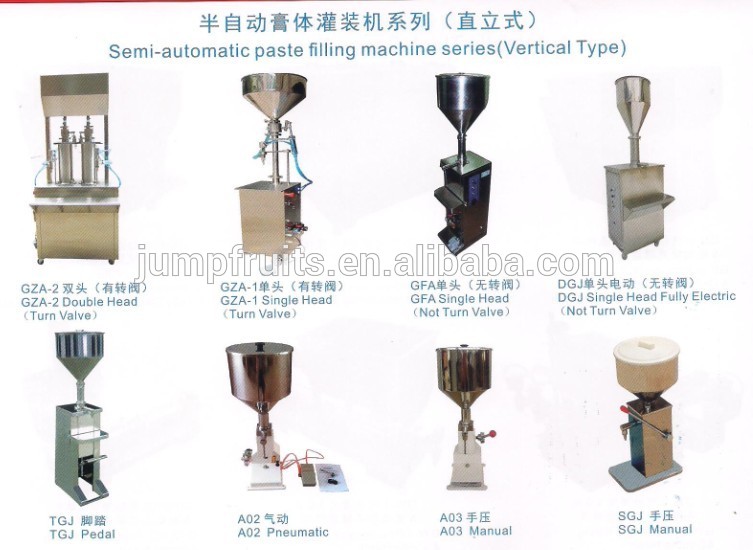

Main Parameters
Item
GZA-2
GZA-1
GFA
DGJ
TGJ
A02
A03
SGJ
Filling speed(bottles/min)
0-80
0-40
0-40
0-30
0-20
0-40
0-20
0-20
Filling accuracy
±1%
Power supply
220V 50hz
220V 50hz
Air pressure
0.6-0.8Mpa
0.6-0.8Mpa
Power
100W
500W
Hopper Cubage
80L
40L
30L
30L
30L
15L
15L
15L
Filling range
5-100ml,20-300ml,50-500ml,100-1000ml,300-2000ml,500-3000ml,1000-5000ml
5-100ml,30-300ml,50-500ml,100-1000ml
10-150ml,20-280ml
5-50ml
