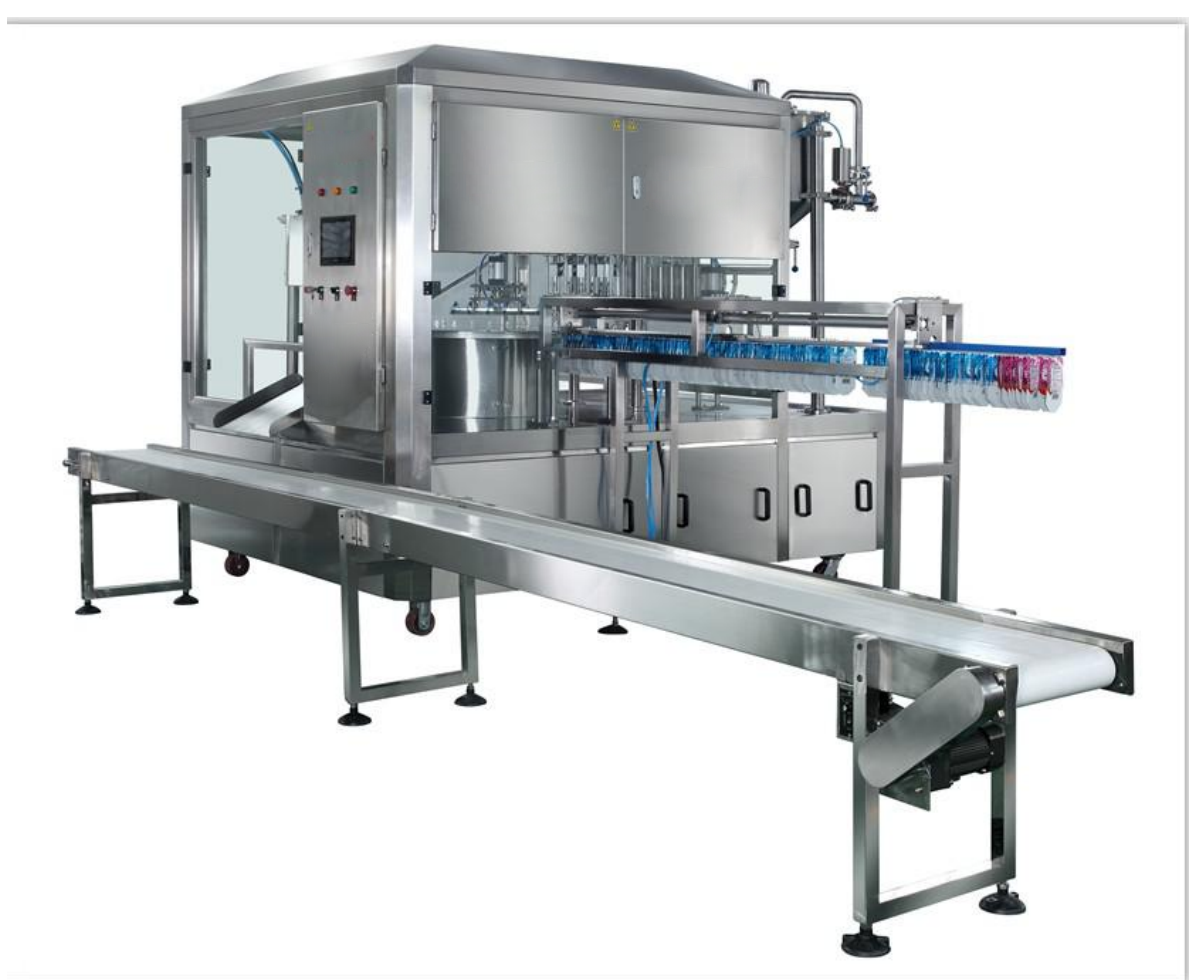

Pouch Bag Can Glass Jar Bottle Dosing Filling & Capping Machine

Filling material:Juice /paste
Packing style: Spout pouch/glass jar/bottle
Caliber:8.6mm
Machine package specification: Export packing
Filling capacity; 50-200ml(customized)
Production capacity;9000-12000 per hour
Equipment running description
Auto pouch locating → Auto dosing filling → Auto spout cleaning → Auto cap feeding and inserting(with cap elevator) → Auto cap screwing (adopt servo motor to control torque) → Discharging → Auto CIP cleaning. ( Fully automatic production process )

Adjustable dosing filling( with CIP cleaning pipeline and joint ), argon arc welding for pipeline( keep the inner wall smooth and clean ).
Barrel configuration: With the liquid level automatic control device, spray ball and breather valve ( with agitation and insulation device ).

Equipment structure description:
1. The machine adopts pneumatic, mechanical drive and “PLC” Control combination;
2. Automatic vacuum quantitative filling, quantitative quasi, no splash, no leakage;
3. Capping device to make degree of tightness appropriate；
4. Increase tempered glass dust cover and with an air purifier.
