Multi-function Electronic Quantitative Scale For Flour / Powder / Rice Bag Packing

Short Description:


Product Detail

Product Tags


Overview
Quick Details
Type:
Multi-Function Packaging Machine
Packaging Material:
plastic
Packaging Type:
Bags
Function:
FILLING, Sealing
Application:
Food, MEDICAL, Chemical, Machinery & Hardware
Automatic Grade:
Semi-automatic
Driven Type:
Electric
Voltage:
220V
Place of Origin:
Shanghai, China
Brand Name:
Jumpfruits
Dimension(L*W*H):
1980*720*630mm
Certification:
iso
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year, 1 Year Warrantty
Product name:
Multi-function flour / powder / rice bag packing machine
Usage:
Bag packing
Main Function:
Weighting Packing
Packing speed:
≥180/h
Measuring:
10-50kg
Bag type:
Woven bags, sack paper bags, cloth bags and plastic bags
Sealing type:
Stick Seal
Control system:
Control System
Supply Ability
Supply Ability:
5 Set/Sets per Month flour packaging machine
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai

Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 – 1 >1
Est. Time(days) 50 To be negotiated
Product Description

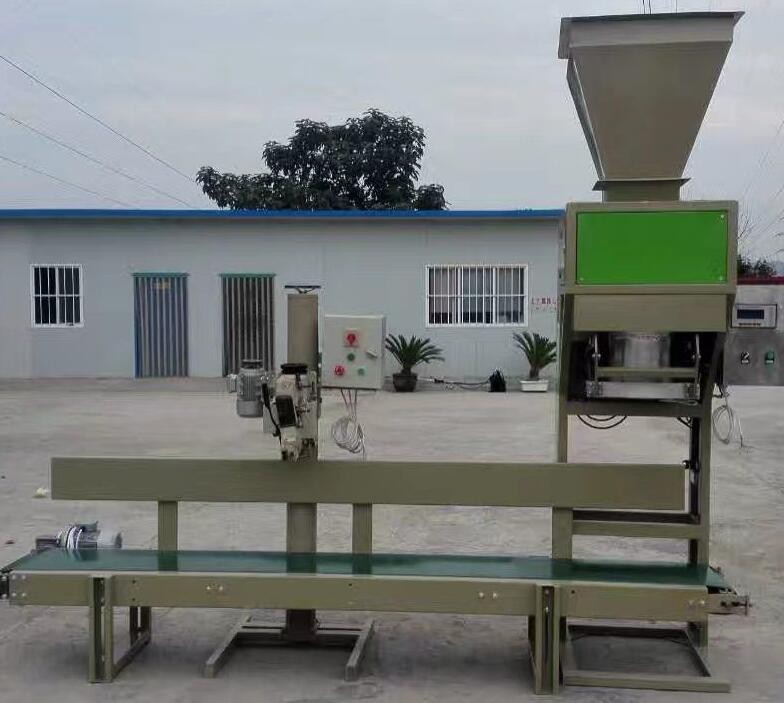

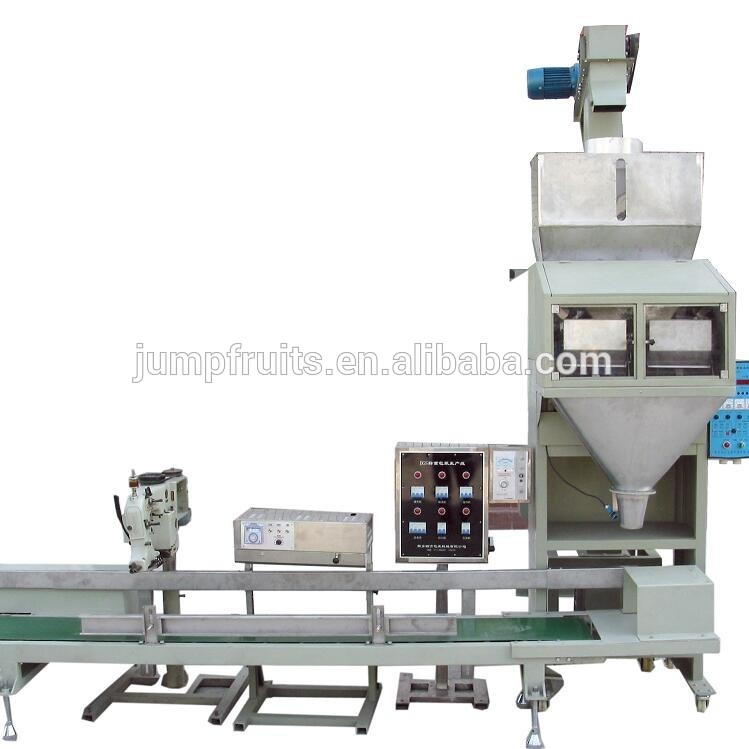

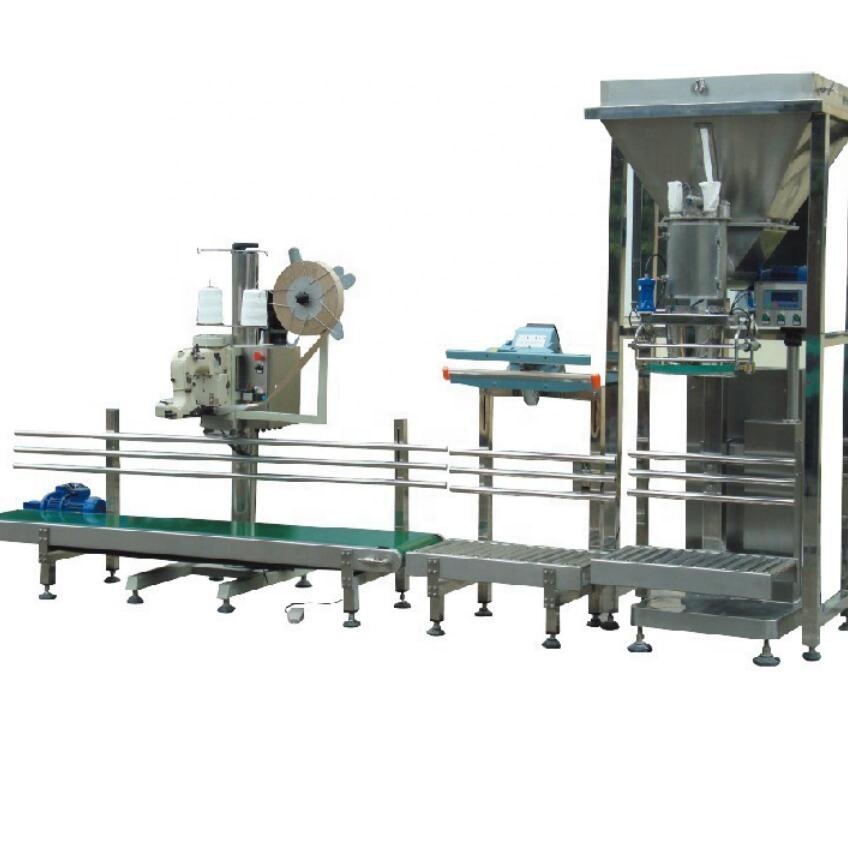

Multi-function electronic quantitative scale for flour / powder / rice bag packing

Features:

 1. It integrates feeding, weighing, bagging, conveying and sewing. It is suitable for woven bags, sack paper bags, cloth bags and plastic bags.
2, material; material contact parts are made of 304 stainless steel, high pit corrosion capacity. Pneumatic actuator, reliable operation and simple maintenance
3. It adopts high-speed sampling processing instrument and digital frequency conversion technology, with automatic setting of control parameters and automatic correction of drop. Adapt to the characteristics of different packaging materials, continuous operation, simple and flexible operation. RS-232C or RS485 communication interface is available for networking with the host computer
4, perfect exhaust system and good sealing performance, double sealing, prevent powder leakage, ensure high purity of products
5. Specially designed feeding and bucket type measuring mechanism to improve the flow speed of materials, fast packaging speed and high packaging precision. Can be customized according to customer needs
6, widely used in food, oil, feed, food, sugar, starch, flour, protein powder, fiber, leather, seed processing, chemical, fertilizer, cement, warehousing, docks and other industries in the production and operation of automatic quantitative packaging. The utility model has the advantages of wide quantitative range, high precision, and the conveying sewing machine which can be raised and lowered with the table top, and the utility model has the advantages of high efficiency and high efficiency.

SPECIFICATIONS FOR Multi-function electronic quantitative scale
Model
JPYH-A50
Applicable material
Weighing, packaging and sealing of powders or granules such as grain, grain, feed, food, sugar, salt, starch, flour, protein powder, fiber, skin, seed, chemical, fertilizer, cement, etc.
Weighing range
10-50kg
Packing speed
≥180 bags/ h
Voltage
AC 380V 220V 50Hz
Power consumption
RV50 0.55kw 0.37KW single Phase 220V
Air supply
Suggested selection of Air Compressor with exhaust capacity of more than 0.17 m3/min
Gas consumption
0.4~0.6Mpa 1m3/h
Work environment
0 ℃ 40 ℃ relative humidity ≤ 90%
Packing & Delivery
Packaging
Size
1980*720*630MM
Weight
200KG
Packaging Details
*Put the machine onto bottom iron support
*Bind foot stool with iron bar on the bottom support by iron wire tightly.
*Use PE film to Shrink the machine well
*Wrapped the wooden case with metal frame
*Pack the complete machine into container by forklift truck.
*Deliver them by sea or by air
*30sets/20 feet Container
Related Products

Powder packaging machine

100% Response Rate

Granule packing machine

100% Response Rate

Rice bag packing machine

100% Response Rate

FAQ

01:How to operate the machine?We start to use the machine at the first time?
Answer:We have operation video and instruction book and also have engineers to user’s company
02.How to repair or change when some parts are broken?
Answer:Factory will make fixed video as the problems the users mentioned
03:How to maintain the machine?
Answer:Maintain manual will note how to do for users
04:How to choose the most suitable packing machine?
Answers:It deepends on the products.Weight of package,and bag type and bag’s size
