Manufacturing Industrial Fruit Pulp Juice Extractor Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Engine
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
SH-JUMP
Type:
juice production line
Voltage:
220V/380V
Power:
depends on capacity
Weight:
depends on capacity
Dimension(L*W*H):
depends on capacity
Certification:
CE/ISO9001
Warranty:
1 Year warranty,life-long aftersell service
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Manufacturing commercial fruit pulp juice extractor machine
Usage:
to extract the raw fruit pulp
material:
SUS 304
Capacity:
5T-100T/H
application:
to strawberry,banana,hawkthorn,apricot,tomato etc.
Material:
304 Stainless Steel
Application:
Root Vegetables
Function:
Multifunctional
Feature:
High Efficiency
Supply Ability
Supply Ability:
20 Set/Sets per Month juicer extractor machine
Packaging & Delivery
Packaging Details
Stable wooden package protects machine from strike and damage. Wound plastic film keeps machine out of damp and corrosion.Fumigation-free package helps the smooth customs clearance.The big size machine will be fixed in container without package.
Port
shanghai port



Product Description

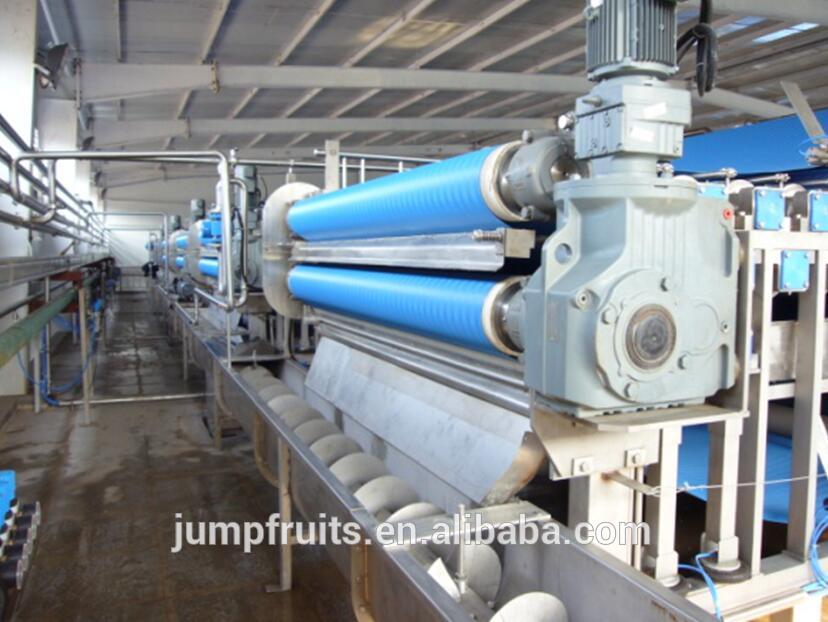

Juice Extractor Machine


The machine is based on abroad advanced technology. By most of technical exports of the domestic industry of dewater equipment in 90′s in the beverage industry is mainly used for fruit juice extraction, particularly applicable to berry, kernel fruit and vegetable juicing. The prodution is 20 tons per hour.The advantages are high juice rate, low energy and simple operation. It is one of the most ideassqueezing machine for large and madium-sized fruit juice factory using.
Technical
Parameter
JUMP-800
JUMP-1200
JUMP-1750
JUMP-2500lr
JUMP-2500HK
Output(T/H)
1-3
4-7
8-12
18-22
18-22
Belt Length
92000
14100
14500
14500
17200
Belt Width
800
1200
1750
2500
2500
Juicing Rate(Apple juice)
≧75%
≧75%
≧75%
≧75%
≧78%
Quantity(ROOTS)
20
20
20
20
24
Pressure(MP)
≤0.4
≤0.4
≤0.4
≤0.4
≤0.4
Main Power(kw)
2.2
2.2
3
4
5.5
Whole Line

A. Scraper-type spray elevator

Select stainless steel bracket, food-grade and hard plastic or stainless steel scraper, smoothing blade architecture to prevent the fruit jam; Using imported anti-corrosion bearings, double-sided seal; with continuously variable transmission motor, variable frequency Speed and low operating costsTitle goes here.

B. Sorting  machine



Stainless steel roller conveyor, rotation and solution, a full range of check, no need ends. Manmade fruit platform, painted carbon steel bracket,stainless steel antiskid pedal,stainless steel fence.

C. Crusher

Fusing Italian technology, multiple sets of cross-blade structure, crusher size can be adjusted according to customer or specific project requirements, it will increase the juice juice rate of 2-3% relative to the traditional structure , which is suitable for production of onion sauce, carrot sauce, pepper sauce , apple sauce and other fruits and vegetables sauce and products

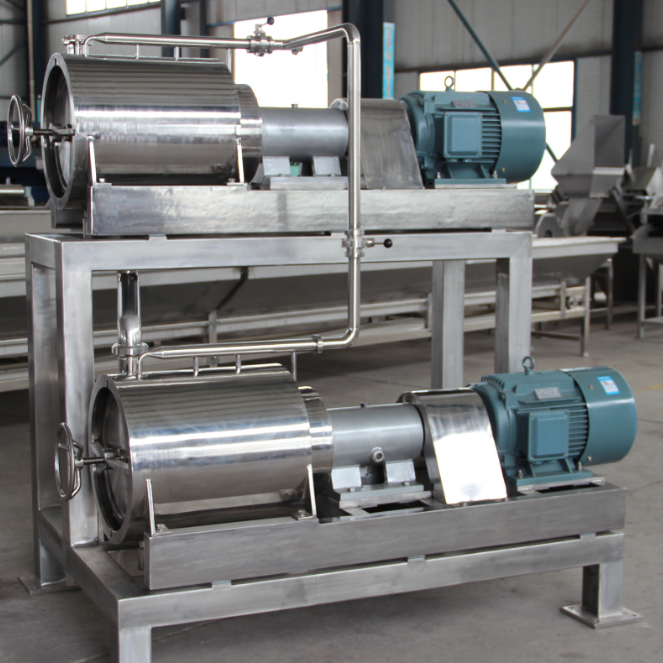

D. Double-stage pulping machine

It have tapered mesh structure and the gap with load can be adjusted, frequency control, so that the juice will be cleaner; Internal mesh aperture are based on customer or specific project requirements to order

E. Evaporator

Single-effect, double-effect,triple-effect and multi-effect evaporator, which will save more energy; Under vacuum, continuous low temperature cycle heating to maximize the protection of nutrients in the material as well as the originals. There are steam recovery system and double times condensate system, it can reduce the consumption of steam;

F. Sterilization machine

Having obtained nine ed technology, take full advantages of the material’s own heat exchange to save energy– about 40%

F. Filling machine

Adopt Italian technology, sub-head and double-headed, continuous filling, reduce return; Using steam injection to sterilize, to ensure filling in aseptic state , the shelf life of product will twp years at room temperature ; In the filling process,using turntable lifting mode to avoid secondary pollution.

Our Service

Pre-sales service

We can suggest customer the most suitable machine according to their formula and Raw material. “Design and development”, “manufacturing”, “installation and commissioning”, “technical training” and “after sales service”. We can introduce you supplier of raw material, bottles, labels etc. Welcome you to our production workshop to learn how our engineer produce. We could customize machines according to your real need, and we could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

After-sale service

1.Installation and commissioning: We will send experienced engineering and technical personnel to be responsible for the installation and commissioning of the equipment until the equipment is qualified to ensure that the equipment is in time and put into production;

2.Regular visits:To ensure the long-term stable operation of the equipment, we will be based on customer needs, provide one to three times a year to come to technical support and other integrated services;

3.Detailed inspection report: Whether the inspection regular service, or the annual maintenance, our engineers will provide a detailed inspection report for the customer and the company reference archive, in order to learn the equipment operation at any time;

4.Fully complete parts inventory: In order to reduce the cost of parts in your inventory, provide better and faster service, we prepared a complete inventory of parts of equipment, to meet customers possible period of want or need;

5.Professional and technical training:In order to ensure the performance of the customer’s technical personnel to become familiar with the equipment, correctly grasp the equipment operation and maintenance procedures, in addition to install on-site technical training. Besides, you also can hold all kinds of professionals to the factory workshops, to help you faster and more comprehensive grasp of technology;

6.Software and consulting services:In order to allow your technical staff to have a greater understanding of the equipment related counseling, I will arrange to send the equipment regularly sent to the advisory and latest information magazine.No need worry if you know little about how to carry out the plant in your country.We not only offer the equipments to you,but also provide one-stop service, from your warehouse designing (water, electricity ,steam) , worker training, machine installation and debugging, life-long after-sale service etc.

Certifications
FAQ

Why choose us?

1.”Quality is priority”. we always attach great importance to quality control from the very beginning to the very end;

2.we have a professional manufacture experience and machining equipment;

3.we are factory ,we can provide you the super quality and very competitive price;

4.company has a quality,young,innovative and strong scientific research technical team

Is your price competitive?

surely we will give you best factory price based on superior product and service.
Any warranty?

1.one year equipment warranty after successful installation & commissioning of equipment and maintenance for lifelong time;

2.free installation and test before sending and free training for operation

3.advice for the solutions best for customers requirements
How about the te
