Juice / Milk / Tomato Paste Sterilizer With Tube-In-Tube

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
jumpfruits
Usage:
Fruit & Vegetable
Type:
Ultra High Temperature
Voltage:
380V/220V
Power:
10Kw-700Kw
Weight:
1500kg
Dimension(L*W*H):
4938mm*1600mm*1880mm
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
milk tube sterilizer
Application:
Food Products
Material:
Stainless Steel SUS304
Sterilizing way:
High Temperature
Name:
UHT Tube Sterilizer
Control system:
Fully Automatic
Heating way:
Electric Heating UHT
Design Temperature:
147 Degree Centigrade
Advantage:
Short Time Sterilization
Function:
Fully Automatic Processing
Supply Ability
Supply Ability:
10 Set/Sets per Year milk tube sterilizer
Packaging & Delivery
Packaging Details
accroding your requirements
Port
Shanghai

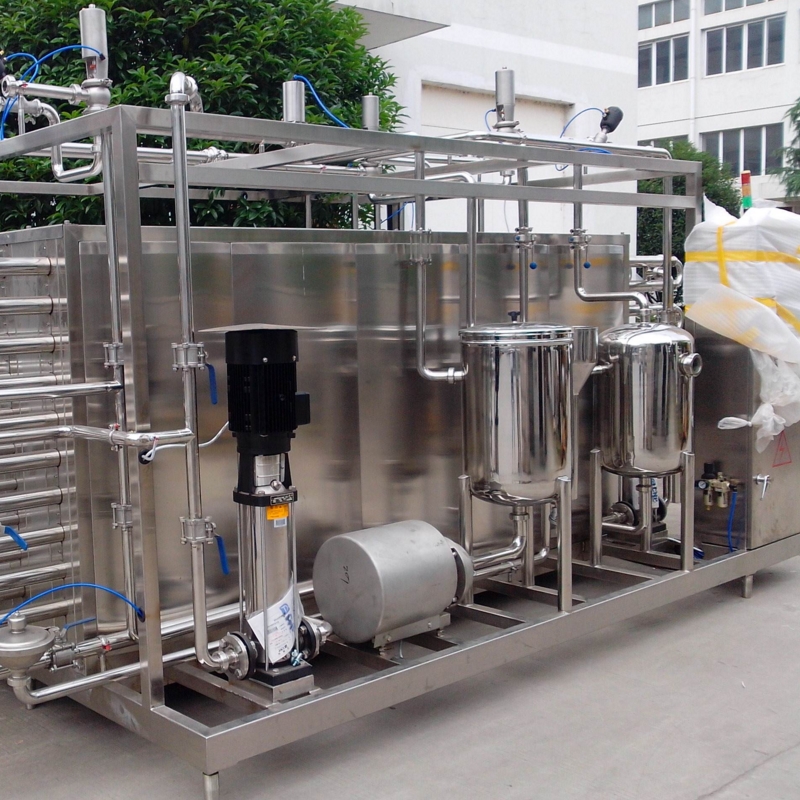

JUMP STERILIZER is designed for processing food products containing solid ingredients in pieces or particulates, destined to subsequent aseptic packaging. Product is subject to a thermal cycle by means of single pipe indirect heat exchangers, made of two pipes with variable profiles having decreasing diameters, placed one inside the other.

Product flows inside the internal pipe, while heating and cooling fluids circulate in counter-current to the product, inside the external anular space. This process allows preserving the product at room temperature over long periods of time, while the whole plant is fully automated.

This plant is normally included in a complete aseptic production line, providing for the following processing phases:

  • Preparation (mixer)
  • Product pre-heating
  • Product sterilization by means of the JUMP MT unit
  • Intermediate aseptic product storage in horizontal or vertical tanks according to product type (optional)
  • Sterile bag filling by means of an aseptic filler
