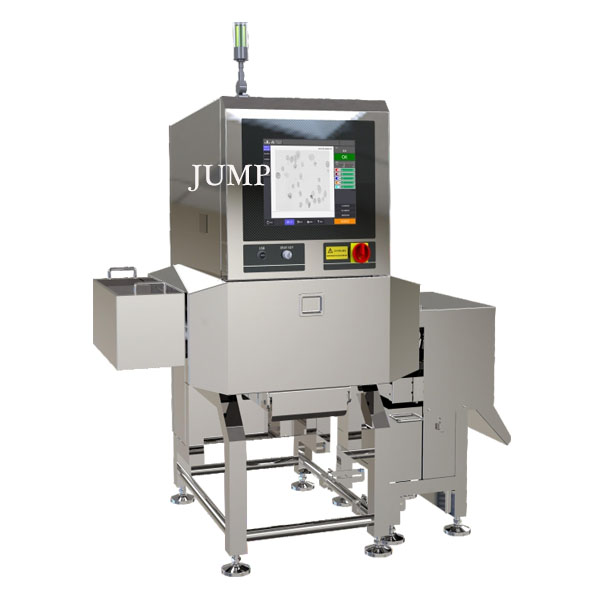

Industrial X-ray Inspection Machine B4010 For Conventional Bulk Products

Features
●Using a fully sealed design to deal with humid environments
●Adopt double-layer thermal cycle technology to deal with high temperature environment
●Adopt anti-condensation design to cope with temperature difference environment
●Using Linux system to ensure stable operation and virus immunity
●The equipment adopts modular design
●Multiple product forms can be flexibly switched
●With networking function, software can be updated online
●System alarm function

Use
It can automatically detect foreign objects in food that cannot be seen by the naked eye
(Metal, stone, glass, plastic, bones, etc.) and internal defects (Void, cracks) of the product have the basic function of automatically detecting foreign objects, and can also detect the missing and defective products of the packaged product at the same time. Prevent the transfer of foreign objects (transport)

Radio source: 80kV, maximum power 210W
Detection accuracy: metal ball: ￠0.3mm; metal wire ￠0.2x2mm; ceramic glass ball ￠1.0mm
Operating system: Linux
Human-machine interaction: 17-inch touch screen LCD display
Conveyor speed: 5-60m/min
Weight of product to be inspected: Max 10kg
Product size to be inspected: maximum width 400mm, maximum height 100mm
Power supply: AC220V 50-60Hz
Temperature and humidity: ambient temperature 0-45℃, relative humidity 30-85% without frost
Waterproof rating: the conveyor is IP66, the rest is IP40
Equipment material: 304 stainless steel
