Industrial Milk/Juice Vaccum Air Degasser

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Processing:
Other
Applicable Industries:
Food & Beverage Factory
Condition:
New
Place of Origin:
China
Brand Name:
OEM
Model Number:
TQ-2-3-A
Voltage:
380v
Power:
5200
Weight:
800kg
Dimension(L*W*H):
1200*1000*2500
Processing Types:
juice , milk , jam
Certification:
SGS
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Product name:
Industrial milk / juice vaccum air degasser
Material:
Food garde 304 Stainless Steel
Color:
Silvery
Capacity:
2-3T/H
Feature:
High Effiect
Function:
Remove oxygen and inhibit browning
Usage:
juice / milk / beverage Wine Making
Supply Ability
Supply Ability:
3 Set/Sets per Month vacuum degasser
Packaging & Delivery
Packaging Details
1.Stable wooden package protects machine from strike and damage. 2.Wound plastic film keeps machine out of damp and corrosion.
Port
shanghai



Product Description

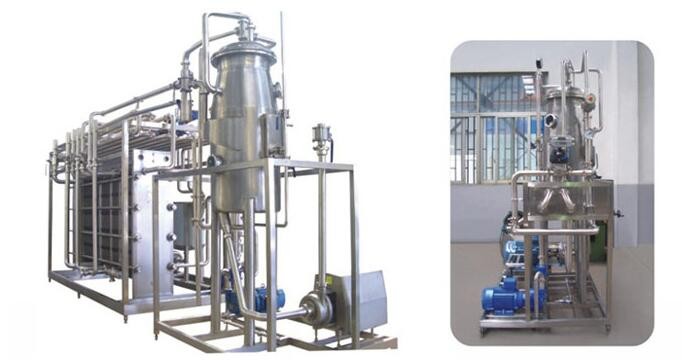

Industrial milk / juice vaccum air degasser for juice beverage processing plant


Vacuum low temperature degasser introduction:
1. Use vacuum to remove air (oxygen) from milk or juice, inhibit browning, inhibit oxidation of pigments, vitamin C, aroma components and other substances, and prevent product quality from deteriorating;
2. Remove the gas attached to the slurry to suppress the floating of the particles and maintain a good appearance;
3. Reduce the sterilizing of the filling machine is foaming
4. Support with the sterilization unit for automatic control

Technical parameters:

Model
TQ-2-3-A
TQ-4-6-A
Capacity
2-3t/h
4-6t/h
Work pressure
-0.052–0.082Mpa
-0.052–0.082Mpa
Container inner diameter
φ510
φ700
Electricity consumption
5.2KW
7.2KW
Dimension
1200*1000*1500MM
1400*1200*2600MM
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T
Packaging Details
Packaged in Tetra pak,and have a shelf life for one year.
FAQ

1.What is the warranty period of the machine?
One year. Except the wearing parts, we will provide free maintenance service for the damaged parts caused by normal operation within warranty. This warranty does not cover wear and tear due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided.

2.What service can you provide before sales?
Firstly, we can supply the most suitable machine according to your capacity. Secondly, After getting your workshop dimension, we can design the workshop machine layout for you. Thirdly, we can provide technical support both before and after sales.

3.How can you guarantee the after sales service?
We can send engineers to guide the installation, commissioning, and training according to the service agreement we signed.
