Industrial Fruit / Sugarcane / Apple Juice / Water Double Vacuum Filter Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Processing:
Filter
Applicable Industries:
Food & Beverage Factory
Condition:
New
Place of Origin:
China
Brand Name:
Jumpfruits
Model Number:
RFGL03-015
Processing Types:
Juice
Voltage:
220v/380v
Power:
750
Weight:
100kg
Dimension(L*W*H):
1000*300*1000mm
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
juice / water double vacuum filter machine
Material:
304 Stainless Steel
Application:
fruit and vegetable processing
Function:
Multifunctional
Usage:
Industrial Usage
Feature:
High Efficiency
Color:
Silver
Supply Ability
Supply Ability:
10 Set/Sets per Month juice / water double vacuum filter machine
Packaging & Delivery
Packaging Details
1.Stable wooden package protects machine from strike and damage. 2.Wound plastic film keeps machine out of damp and corrosion.3.Fumigation-free package helps the smooth customs clearance.4.The big size machine will be fixed in container without package.
Port
Tianjin
Lead Time :
Quantity(Units) 1 – 1 >1
Est. Time(days) 15 To be negotiated
Product Description

Industrial fruit / sugarcane / apple juice / water double vacuum filter machine

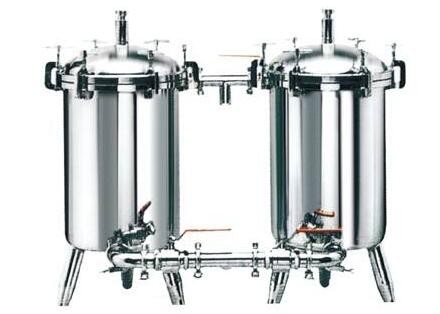

The equipment is made of stainless steel and consists of two cylinders. It is a single-layer stainless steel welded structure with polished inner and outer surfaces and a venting valve at the top for deflation during operation. The pipe joint adopts the expansion joint. After the water pressure test of 0.3Mpa, the three-way external thread cock is flexible to open and close. The equipment is compact in structure, convenient in operation and simple in maintenance.

Double filter is also called parallel switching filter. It uses two three-way ball valves to assemble two single-tube filters on one frame. It does not need to stop when cleaning the filter to ensure continuous operation. It is a non-stop production line filter device. Firstly, the filter element of the filter, in addition to the stainless steel filter element, can also be used with high-quality honeycomb type degreased fiber cotton, which can filter out particles with a particle size of 1μ or more. The filter can also be used in a single cylinder. Common frame, the remaining dimensions remain unchanged.

Features:
1.Good sealing effect and eliminate side leakage
2.Effective filtration area and higher filtration efficiency
3.The double filter can be one of coarse filtration, one is precision filtration, or both of the filtrations are precision or coarse filtration; various combinations can be matched according to actual conditions.
4.The double filtered filter media can be a filter bag or a filter cartridge.
5.t is more convenient and quicker to replace the filter bag, lower operating cost, reasonable structure, more stable and reliable filtration, and adjustable installation and debugging to meet the space requirements of specific applications.

Product Usage:
1. Weakly corrosive materials in chemical and petrochemical production, such as water, ammonia, oil, hydrocarbons, etc.
2. Corrosive materials in chemical production, such as caustic soda, concentrated sulfuric acid, carbonic acid, acetic acid, etc.
3. Low temperature materials in refrigeration, such as liquid methane, liquid ammonia, liquid oxygen and various refrigerants.

Main technical parameters:
Model
RFGL03-015
RFGL03-030
RFGL03-050
Filtration area (㎡)
0.15
0.3
0.5
Filtration temperature(℃)
≤100
use pressure(Mpa)
0.2
Import pipe diameter
φ32mm
φ40mm
G2″
Exportport pipe diameter
φ32mm
φ40mm
G2″
Dimension (L*W*H)mm
1000*300*1000
1200*3500*1200
1300*500*1300
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
