1. Fruit cleaning machine and rising platform portion

Structure:stainless steel water tank,select and rising platform, and high pressure water pump,and spray head.

a. Installed with stainless steel water tank with filter for recycling water. High-pressure water pump is used to wash the fruits, like surf bath, to make sure the fruit is clean and orderly rising. (water tank size:3500×1340×770mm)
b. After cleaning in the stainless steel water tank, the fruits will be elevated to the straight selection platform, the plastic roll move forward while rotate, which will make it easier for the inferior fruits to be selected out. While taking advantage of the spray-head spray the fruit surface, to remove residues (rising platform size:3000×1100×1450mm)
c. High-pressure water pump power:1.1kw,380v/50Hz,stepless speed reducer
d. Upgrade platform motor power:0.75kw,380v/50Hz

2. Fruit Spraying and waxing portion

Structure:brush roller, spray-head, timer, wax nozzle,wax tank,filter,air blower.

a. The use of rotation brush roller and secondary spray rinse the fruit surface,spray at the sixth brush roller to eliminate attachment
b. During the conveying process, the brush rollers will clean out the water on the fruit, and they are also used to brighten the fruit. Four cooling fans are installed in the middle of the brush rollers for drying the fruits
c. During the second half of conveyance, timer is used to control electromagnetic wax nozzle., where edible wax is sprayed. The interval time and wax spraying time can be set freely. After spraying, the rotated brush rollers will make the wax sprayed homogeneously spread on the fruit.
d. Power:0.75kw,380v/50Hz,stepless speed reducer
e. Size:4000×1300×1510mm

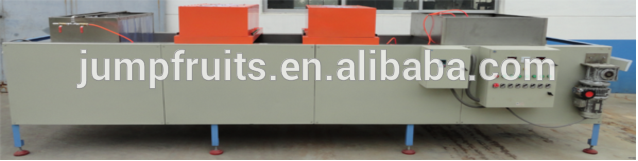

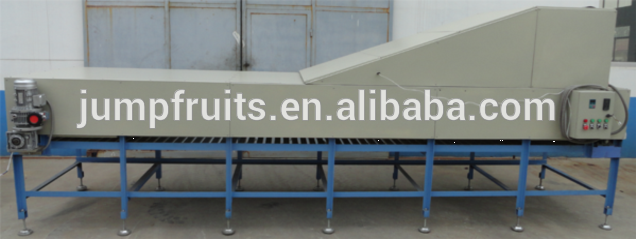

3. Heating and drying portion
a. Electrical heating and intelligent temperature controller is installed. The temperature controller can be set freely and automatic temperature control. Heating power :20kw
b. The temperature in the drying tunnel is from low to high. and the wind in the tunnel is closed inner loop. Centrifugal blower to achieve the internal hot and cold air convection
c. Transport the waxed fruit in the drying box, and let the surface water evaporated. The drying process could improve the brightness of the fruit.
d. Thicker insulation layer at the sides and top of the drying tunnel
e. Power:0.75kw,stepless speed reducer
f. Size:4000×1400×2000mm

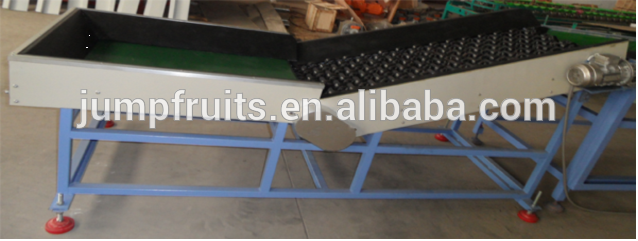

4. Automatic feeding for grading machine
Use conveyor belt and rubber-tired to load fruit to the fruit grading machine conveyor belt.
a. Power:0.75kw, frequency control
b. Size:2600×1450×1250mm

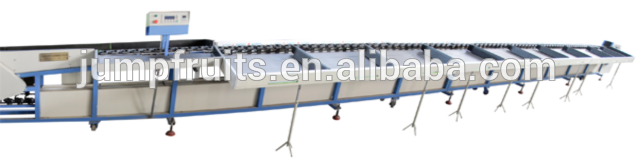

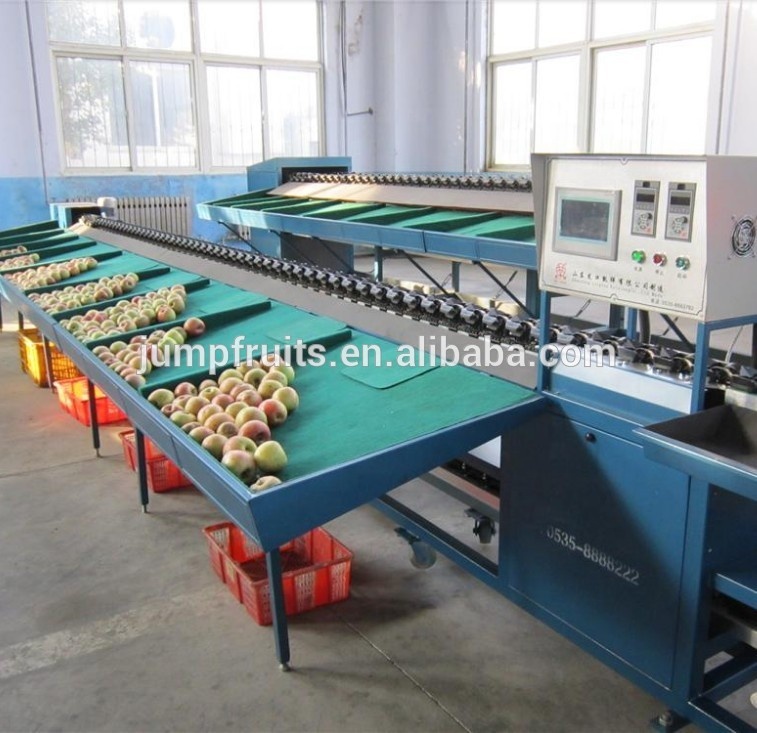

5. Single-lane Electronic fruit grading machine
a. Power:1.5kw,380V,50HZ
b. Size:11800×1900×1400mm
c. Speed:15000-21000pcs/hour
d. Electronic controlling system:Touch screen,PLC, weighing module, weighing sensor
e. Grade:10 grades
f. Operating system:English/Chinese Interface
