Industrial 500L/h Soft Ice Cream Production Line Machinery
- Applicable Industries:
-
Manufacturing Plant
- After Warranty Service:
-
Video technical support
- Local Service Location:
-
None
- Showroom Location:
-
None
- Video outgoing-inspection:
-
Provided
- Machinery Test Report:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
1 Year
- Core Components:
-
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
- Condition:
-
New
- Place of Origin:
-
China
- Brand Name:
-
jumpfruits
- Voltage:
-
380v
- Power:
-
25KW
- Weight:
-
2.8t
- Dimension(L*W*H):
-
5500*2000*2500mm
- Certification:
-
ISO
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Field installation, commissioning and training
- Key Selling Points:
-
High Productivity
- Product name:
-
industrial ice cream making machines
- Application:
-
Ice Cream
- Final product:
-
Soft Ice Cream
- Raw material:
-
milk powder
- Function:
-
Milk stirring,Homogenizer,Pasteurization,frozen
- Capacity:
-
500L/H
- Usage:
-
Dairy Product Production Line
- 5 Set/Sets per Month industrial ice cream making machines
- Packaging Details
- export wooden case
- Port
- Shanghai
- Lead Time :
-
Quantity(Sets) 1 – 1 >1 Est. Time(days) 60 To be negotiated

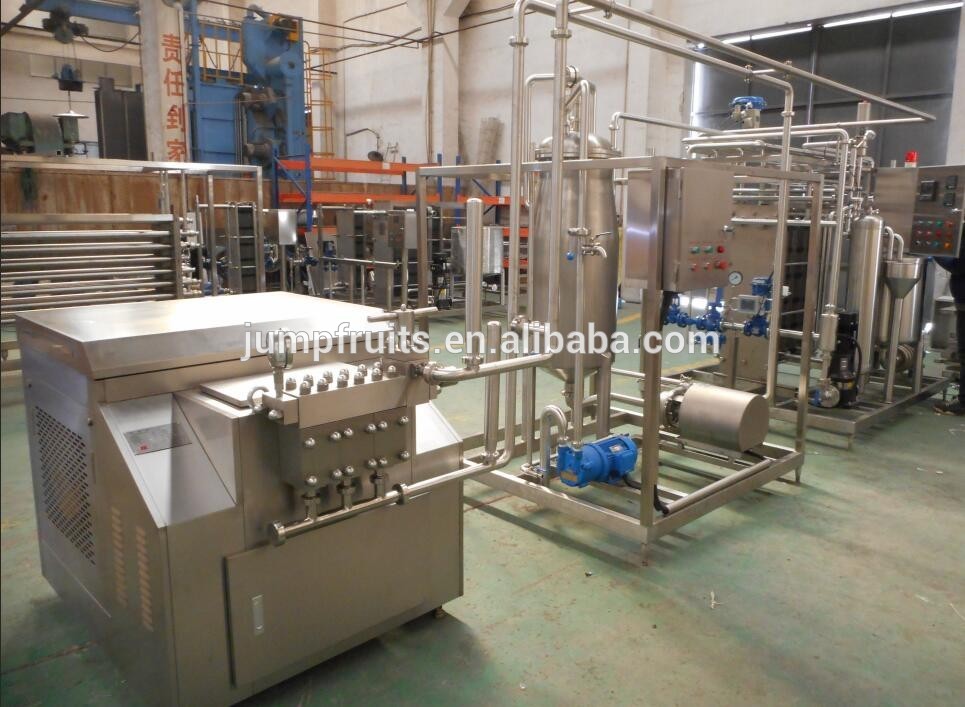

Industrial 500L/h soft ice cream production line machinery
The ice cream production line process is as follows:
Gouache mixer→high shear emulsion tank→centrifugal pump→filter→homogenizer→pasteurization machine→aging cylinder-→rotor pump-→freezing machine
|
Ice cream ingredients sterilization aging system technical parameters
|
||||||
|
Model
|
BR16-PUT-500L (five-stage)
|
Ice water consumption
|
4t/h
|
|||
|
Power consumption
|
25KW
|
Maximum steam consumption
|
65kg/h
|
|||
|
Heat exchange area
|
12 square
|
Compressed air pressure
|
0.6Mpa above
|
|||
|
Purified water consumption
|
2t/h
|
Compressed air consumption
|
0.05 M3/min
|
|||
|
Weight
|
2.8t
|
Dimension
|
5500 (L) x 2000 (W) x 2500 (H)
|
|||
1.What is the warranty period of the machine?
One year. Except the wearing parts, we will provide free maintenance service for the damaged parts caused by normal operation within warranty. This warranty does not cover wear and tear due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided.
2.What service can you provide before sales?
Firstly, we can supply the most suitable machine according to your capacity. Secondly, After getting your workshop dimension, we can design the workshop machine layout for you. Thirdly, we can provide technical support both before and after sales.
3.How can you guarantee the after sales service?
We can send engineers to guide the installation, commissioning, and training according to the service agreement we signed.
