Industrial 200L Tilting Steam Heating Stirring Sandwich Pot

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Type:
Soup & Stock Pots
Applicable Stove:
Induction Cooker
Material:
metal
Metal Type:
Stainless Steel
Certification:
Sgs
Feature:
Sustainable
Place of Origin:
Shanghai, China
Brand Name:
jumpfruits
Model Number:
JPDSR-200
Product name:
200L tilting steam heating stirring sandwich pot
Usage:
Restaurant,food indystry
Color:
Silver
Packing:
export wooden case
Thickness:
5mm
Application:
Food Service Equipment Industry
Function:
stirring mixing, heating cooking
MOQ:
1PC
Capacity:
200L
Supply Ability
Supply Ability:
10 Set/Sets per Month industrial stirring cooking pot
Packaging & Delivery
Packaging Details
export wooden case
Port
Shanghai

Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 – 1 >1
Est. Time(days) 30 To be negotiated
Product Description

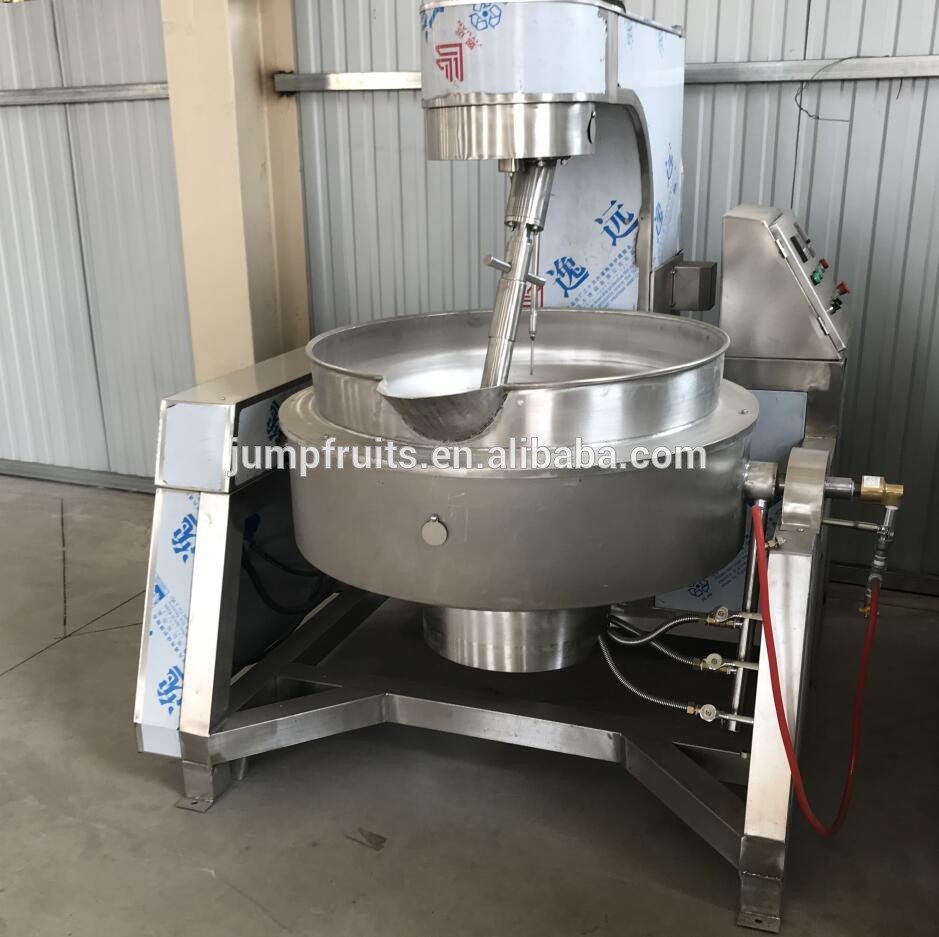

Industrial stainless steel 304 200L tilting steam heating stirring cooking sandwich pot

Equipment construction:
The pot body, the pot edge, the pressure gauge, the hydraulic device, the stirring motor, the stirring tooth, the bearing seat, the bearing and the seat are composed of components.

Main technical parameters for steam heating stirring sandwich cooking pot
Pot body volume
600L
Source
Three-phase four-wire 380 V
Power
2.2KW
Heating type
Steam heating
Boom / pan form
Manual / worm gear
Spindle rotational speed (adjustable range)
6.7 rpm / min
Stirring rotation speed (adjustable range)
14 / 69.3 rpm
Stirring form
Planet / bottom scraper frequency control
Intake control method
Manually control intake air to adjust intake air volume
Box control range
Switch, temperature, stirring speed, stirring arm lift
Reach set temperature
auto alarm
Dimension
1400*1600*1700mm
Pot Body depth
600mm
Pot body diameter
900mm
Weight
800kg

Main Features

The all-steel sandwich pot is formed by one-time spinning of the inner and outer tubes. It is mainly used for meat products, candy, beverages, canned foods, medicinal materials, etc. It can also be used for porridge, boiling water, cooking and other purposes in large restaurants or canteens.
