High efficiency automatic pump type fluid liquid servo filling machine
- Machinery Capacity:
-
8000BPH
- Packaging Material:
-
plastic
- Filling Material:
-
Juice
- Type:
-
Filling Machine
- Applicable Industries:
-
Manufacturing Plant
- After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location:
-
None
- Showroom Location:
-
None
- Condition:
-
New
- Application:
-
Beverage
- Packaging Type:
-
Bottles
- Automatic Grade:
-
Automatic
- Driven Type:
-
Electric
- Voltage:
-
220V/380V
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
Jumpfruits
- Dimension(L*W*H):
-
2000*1000*1800MM
- Weight:
-
500kg
- Certification:
-
ISO
- After-sales Service Provided:
-
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
- Warranty:
-
1 Year, 2 Years
- Key Selling Points:
-
Easy to Operate
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
- Product name:
-
automatic pump type fluid liquid servo filling machine
- Usage:
-
corrosive material Packaging
- Filling material:
-
Flowing Liquid
- Material:
-
Stainless Steel 304
- Bottle type:
-
Galss Bottle
- Capacity:
-
1000bph
- 20 Set/Sets per Year HDPE bottle filling machine price
- Packaging Details
- 1.Stable wooden package protects machine from strike and damage. 2.Wound plastic film keeps machine out of damp and corrosion.3.Fumigation-free package helps the smooth customs clearance.4.The big size machine will be fixed in container without package.
- Port
- Shanghai
- Lead Time :
-
Quantity(Sets) 1 – 1 >1 Est. Time(days) 60 To be negotiated

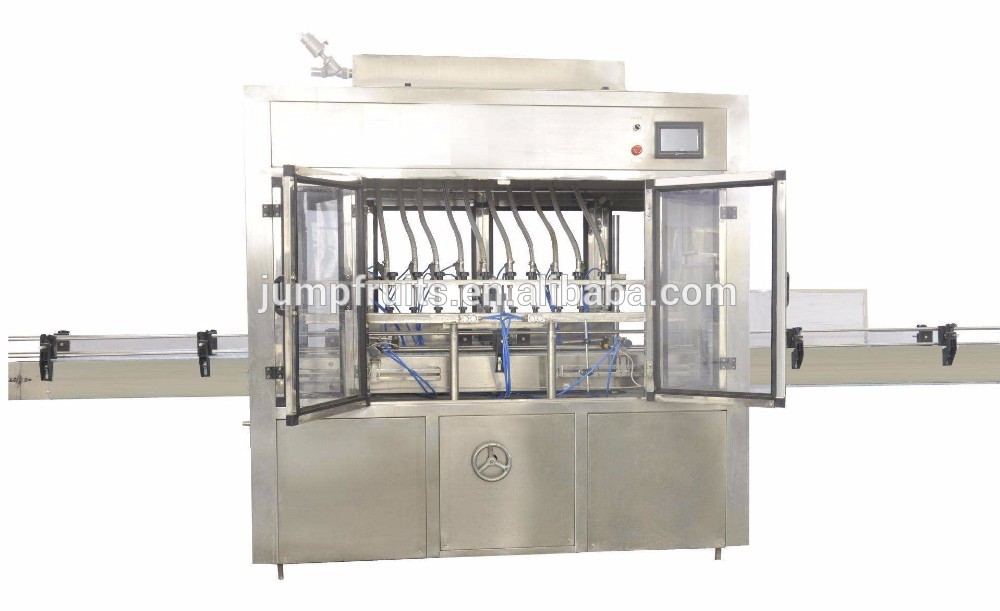

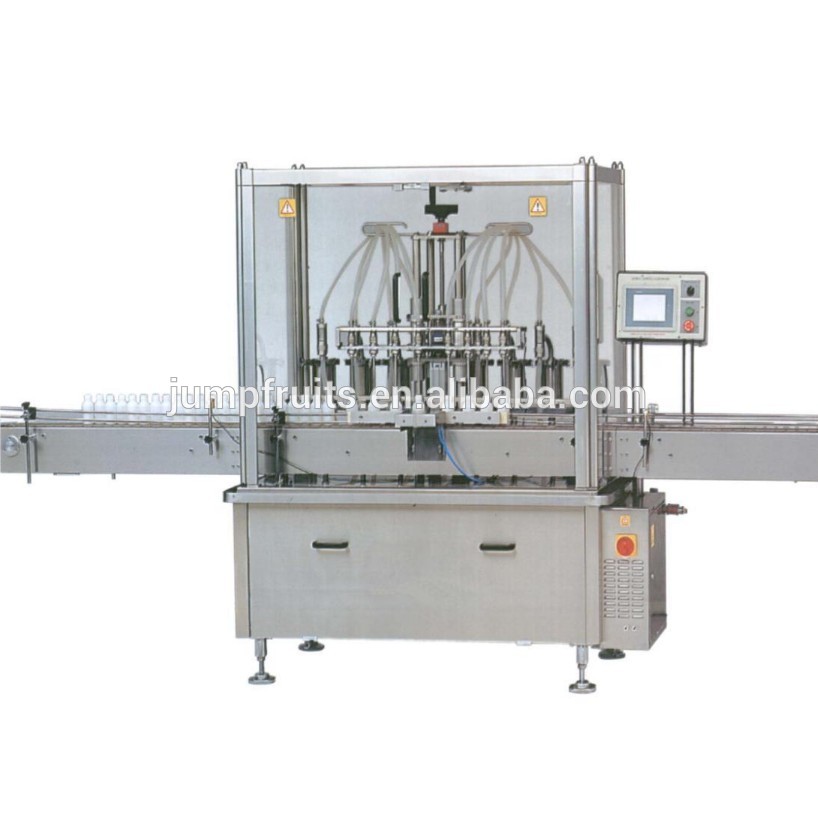

High efficiency automatic pump type fluid liquid servo filling machine
This series of pump is fluid filling machine applicable to be agent, high viscosity,oil and other fluid and semi-liquid,adopt special servo motor drive the principle of gear pump,liquid filing is controlled by a microcomputer measurement and speed to ci=ontainer,wide adaptability of liquid, the measuring accuracy.Especially suitable for alcohol,methanol,perfume,nail polish remover,nail polish,glycerin,acetone,corrosive material such as corrosive materials.
Main characteristic.
1.Widely filling range, can adjust of filling volume is 2ml–infinite.
2. Input the filling volume, automatic controlled and adjust by PLC
3. Servo motor drive, high precision, filling accuracy is ±0.5%
4. One head controlled by one pump, can adjust and set by alone
5. Can be set up after the first fast slow filling speed, guarantee the material overflow.
6. No sealing ring, no volume vulnerability consumables,maintenance costs low
7. Corrosion resistance, high temperature resistant,cleaning is very convenient
Parameters:
|
Model
|
SGB-2
|
SGB-4
|
SGB-6
|
SGB-10
|
SGB-12
|
||||
|
Capacity (b/h) 1L water
|
1000
|
2000
|
3000
|
5000
|
6000
|
||||
|
Filling accuracy
|
±1%
|
||||||||
|
Filling heads
|
2
|
4
|
6
|
10
|
12
|
||||
|
Total power (kw)
|
1.2
|
2
|
2.8
|
3.6
|
4.2
|
||||
|
Filing range
|
2ml-unlimited
|
||||||||
|
Dimension(mm)
|
2000*1000*1800
|
2000*1000*1800
|
3000*1000*1800
|
3000*1000*1800
|
4000*1000*1800
|
||||
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Shanghai Jump Automatic Equipments Co., Ltd.
1.Professional engaged in whole plant equipment design, manufacturing, R & D and turnkey project for Fruit&vegetable deep processing ,Beverage Processing and Dairy Processing.
2.Over forty years' rich experience and sound technical strength.
3.More than 110 established fruit and vegetable processing production lines.
4.Has established stable technical cooperation with the Italy FBR, Ing. Rossi, Bertuzzi CFT.
5.We can provide the entire production line processing 20-1500 tons of raw fruit daily according to the customers
6.Products are also widely infiltrated into overseas markets.
7.With15 years export experience, easily transport cargo to your door
8.Customerized service, revise our products or OEM for your requirements
1.What is the warranty period of the machine?
One year. Except the wearing parts, we will provide free maintenance service for the damaged parts caused by normal operation within warranty. This warranty does not cover wear and tear due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided.
2.What service can you provide before sales?
Firstly, we can supply the most suitable machine according to your capacity. Secondly, After getting your workshop dimension, we can design the workshop machine layout for you. Thirdly, we can provide technical support both before and after sales.
3.How can you guarantee the after sales service?
We can send engineers to guide the installation, commissioning, and training according to the service agreement we signed.
