Full Automatic CIP Cleaning System For Tomato Paste Production Line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JP
Model Number:
JC-CIP002
Type:
Washer
Voltage:
380V/50HZ
Power:
2.2kw
Weight:
500 kg
Dimension(L*W*H):
1100*265*920mm
Certification:
CE/ISO9001
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Automatic cip cleaning system
Application:
Kinds
Function:
Washing Sterilizing
Material:
304 Stainless Steel
Usage:
Industrial Usage
Feature:
Convenient
Raw material:
Sainless Steel
Item:
Automatic Fruits Processing Machine
Name:
CIP Cleaning Machine
Tank size:
100-1000L
Supply Ability
Supply Ability:
5 Set/Sets per Month cip cleaning system
Packaging & Delivery
Packaging Details
1.Stable wooden package protects machine from strike and damage. 2.Wound plastic film keeps machine out of damp and corrosion.3.Fumigation-free package helps the smooth customs clearance.4.The big size machine will be fixed in container without package.
Port
Shanghai
Lead Time :
about 30 days after receiving the advance
Product Description

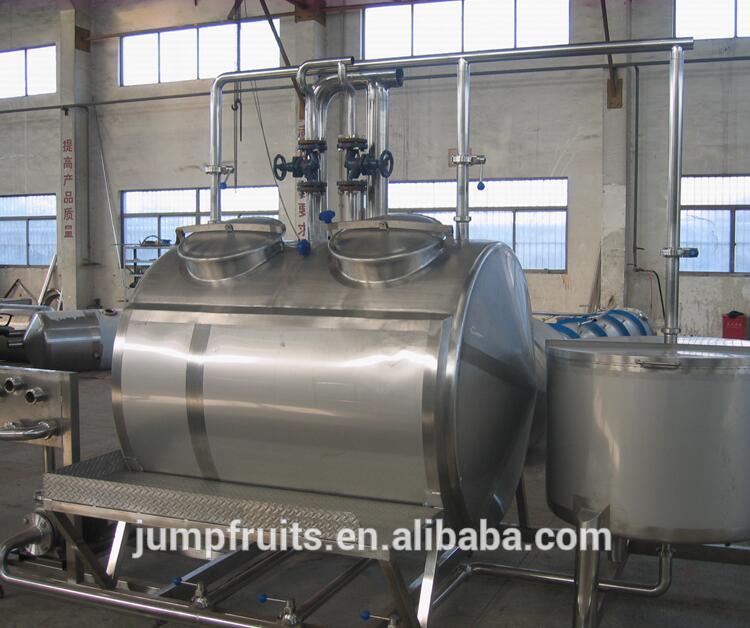

Automatic CIP cleaning system

Automatic CIP cleaning system for dairy products, breweries, beverages and general food plants in the material pipe equipment in-place cleaning. The main material: SUS304 and 316L, the equipment from the alkali tank, acid tank, hot water tank, all kinds of pipes and pneumatic valves, pressure transmitters, conductivity meter, platinum resistance and control system, etc., the use of centrifugal pump Conveying the cleaning liquid Forced circulation in the material pipe and equipment to achieve the purpose of cleaning. Therefore, there is no need to disassemble the pipeline equipment, which can improve equipment utilization and reduce worker’s labor intensity. The specific use of this equipment must be combined with the equipment and piping layout of the worker’s workshop and the cleaning head.

Tank size
1000L-10000L
Tank type
Alcali tank, acid tank, hot water tank, clean water tank,water recycle tank
Cleaning recycles
single/double/three/four circuits
Heating method
coil pipes inside, plate, tubular
                                                      Automatic types and characteristics
Full automatic
1.Flow rate auto control
2.Auto compensate the cip liquid level
3.Temperature auto control
4.Auto compensate the liquid concentrate
5.Cleaning liquids auto transfer
6.Auto alam
Semi-automatic
1.Temperature auto control
2.Electrical control with manual operate the other matters
Manual control
Manual operate on the cleaning process
CIP System

Bucket Elevator

1. smooth bucket structure against clamping fruits, suitable for tomato, strawberry, apple, pear, apricot, etc.
2. running stably with low noise, speed adjustable by transducer.
3. anticorrosive bearings, double sides seal.

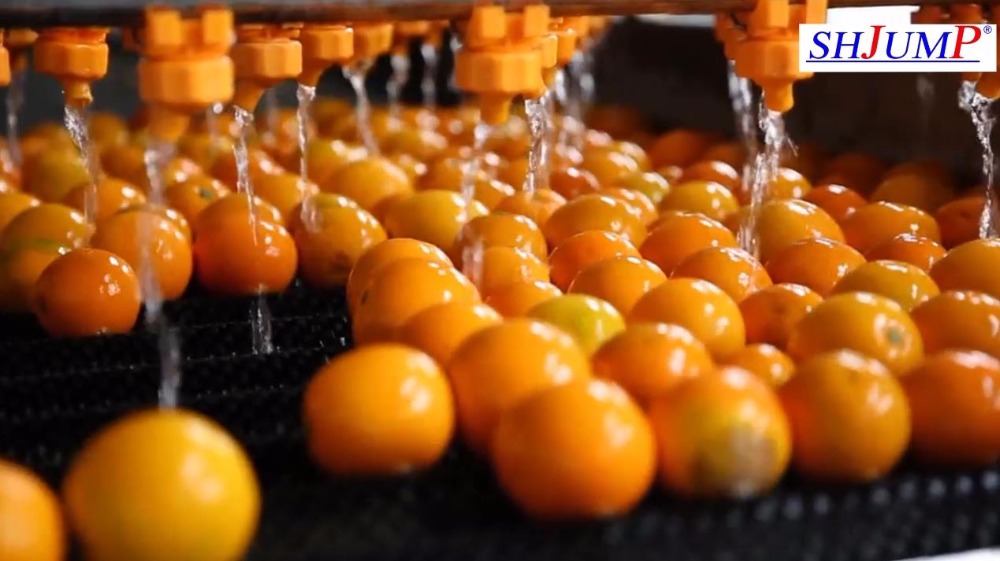

Air Blowing & Washing Machine

1 Used to wash fresh tomato, strawberry, mango, etc.
2 Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well.
3 Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc.

Peeling, pulping & Refining Monobloc (Pulper)

1. The unit can peel, pulp and refine fruits together.
2. The aperture of strainer screen can be adjustable (change) based on customer’s requirement.
3. Incorporated Italian technology, high quality stainless steel material in contact with fruit material.

Belt press extractor

1. Widely used in extracting and dehydrating of many kinds of acinus, pip fruits, and vegetables.
2. the unit adopt advanced technology, big press and high efficiency, high degree of automatic, easy to operate and maintains.
3. the extraction rate can be get 75-85%(based on raw material)
4. low investment and high efficiency

Preheater

1. To inactivate enzyme and protect color of paste.
2. Auto temperature control and the out temperature are adjustable.
3. Multi-tubular structure with end cover
4. If the effect of preheat and extinguish enzyme failed or not enough, the product flow return to tube again automatically.

Evaporator

1. Adjustable and controllable direct contact heat treatment units.
2. Shortest possible residence time, presence of a thin film along the entire length of the tubes reduces holdup and residence time.
3. Special design of liquid distribution systems to ensure correct tube coverage. The feed enters at the top of the calandria where a distributor ensures film formation on the inside surface of each tube.
4. The vapor flow is co-current to the liquid and the vapor drag improves the heat transfer. The vapor and the remaining liquid are separated in a cyclone separator.
5. Efficient design of separators.
6. Multiple effect arrangement provides steam economy.

Tube in tube sterilizer

1. The united is consisted of product receiving tank, superheated water tank, pumps, product dual filter, tubular superheated water generate system, tube in tube heat exchanger, PLC control system, Control cabinet, steam inlet system, valves and sensors, etc.
2. Incorporated Italian technology and conform to Euro-standard
3. Great heat exchange area, low energy consumption and easy maintenance
4. Adopt mirror welding tech and keep the smooth pipe joint
5. Auto backtrack if not enough sterilization
6. CIP and auto SIP available together with aseptic filler
7. Liquid level and temp controlled on real time
