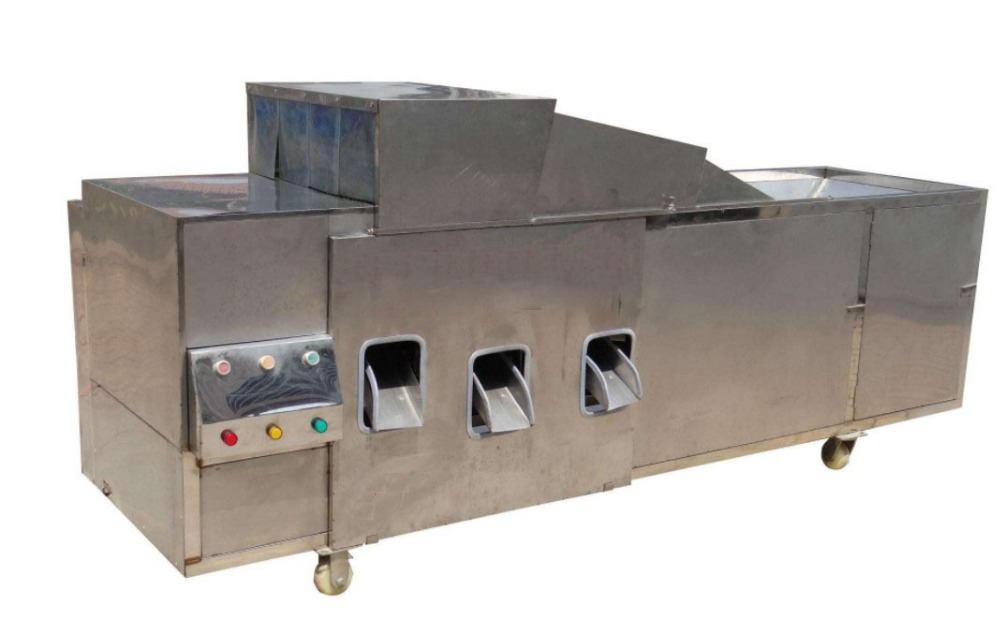

Automatic cherry / dates denuclear / pitting / seed removing machine

This fruit pitting machine is used for denucleation and cutting of cherries. It treats about 700 fruits per minute (about 20 kg). It can also be used for green plum, red, sand, hawthorn and apricot. Stainless steel for rack, casing and swing chain, PLC and touch layer are made of Japanese Omron, beautiful and hygienic, computer program-controlled, and in line with modern food processing specifications. When operating, turn on the power, click on the parameters on the touch screen, manually put the fruit into the hopper, the machine will automatically complete the nucleus, cut and separate, is the necessary machine for the processing of stone fruit and pome fruit.

Cherry pitting machine Technical parameters:

Capacity: 700-900pcs/minute (pieces per minute)

Detachment rate: Rate of kernel removing: 98%

Main material: stainless steel.

Dimension Dimension: 2700x1200x1200mm

Weight: 400kg

Voltage: 220v

Frequency Frequency: 50Hz

Power Power: 1Kw

Air Blowing & Washing Machine

1 Used to wash fresh tomato, strawberry, mango, etc.
2 Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well.
3 Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc.

Peeling, pulping & Refining Monobloc (Pulper)

1. The unit can peel, pulp and refine fruits together.
2. The aperture of strainer screen can be adjustable (change) based on customer’s requirement.
3. Incorporated Italian technology, high quality stainless steel material in contact with fruit material.

Belt press extractor

1. Widely used in extracting and dehydrating of many kinds of acinus, pip fruits, and vegetables.
2. the unit adopt advanced technology, big press and high efficiency, high degree of automatic, easy to operate and maintains.
3. the extraction rate can be get 75-85%(based on raw material)
4. low investment and high efficiency

Preheater

1. To inactivate enzyme and protect color of paste.
2. Auto temperature control and the out temperature are adjustable.
3. Multi-tubular structure with end cover
4. If the effect of preheat and extinguish enzyme failed or not enough, the product flow return to tube again automatically.

Evaporator

1. Adjustable and controllable direct contact heat treatment units.
2. Shortest possible residence time, presence of a thin film along the entire length of the tubes reduces holdup and residence time.
3. Special design of liquid distribution systems to ensure correct tube coverage. The feed enters at the top of the calandria where a distributor ensures film formation on the inside surface of each tube.
4. The vapor flow is co-current to the liquid and the vapor drag improves the heat transfer. The vapor and the remaining liquid are separated in a cyclone separator.
5. Efficient design of separators.
6. Multiple effect arrangement provides steam economy.

Tube in tube sterilizer

1. The united is consisted of product receiving tank, superheated water tank, pumps, product dual filter, tubular superheated water generate system, tube in tube heat exchanger, PLC control system, Control cabinet, steam inlet system, valves and sensors, etc.
2. Incorporated Italian technology and conform to Euro-standard
3. Great heat exchange area, low energy consumption and easy maintenance
4. Adopt mirror welding tech and keep the smooth pipe joint
5. Auto backtrack if not enough sterilization
6. CIP and auto SIP available together with aseptic filler
7. Liquid level and temp controlled on real time
