Automatic Orange Pulp Juice Beverage Filling Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Model Number:
JPF-FM-02
Type:
beverage filling machine
Voltage:
380V
Power:
5.5kw
Weight:
100T
Dimension(L*W*H):
2100*1460*1590mm
Certification:
CE ISO
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
orange juice filling machine
Production capacity:
0.5-200T/H
Material:
SUS 304
Function:
Fruit juice complete production line
Usage:
processing and distribution
Raw material:
fresh ripe apple, orange, tomato, apricot etc.
Advantage:
long-long after-sales Service
Name:
fruit juice filler
Application:
Etc
Capacity:
3-50t/h
Supply Ability
Supply Ability:
10 Set/Sets per Month alcoholic beverage filling machine
Packaging & Delivery
Packaging Details
Standard export package.If customer have specail requirement,we will do as customer require
Port
Shanghai Port
Lead Time :
60-90days
Product Description

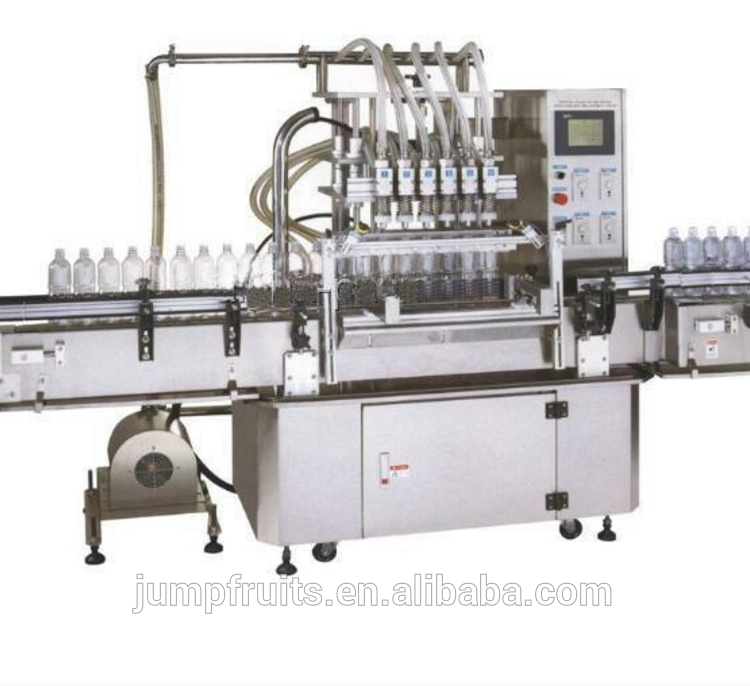

Beverage filling machine

Shanghai JUMP Automatic Equipments Co., Ltd is keeping leadership position in the tomato paste and concentrated apple juice processing line. We also have made brilliant achievements in other fruit& vegetable beverage equipments, such as:

Features:

01). Main structure with SUS 304 stainless steel.

02). With precision electronic balance or flow meter

03). provide several security measures (position controlling, computation controlling, temperature  controling) to prevent the machine from destroying and guarantee the product’s quality.

04). Convey the end product by stainless steel roller.

05). Use mirror welding tech to ensure tidy and smooth welding line.

06). Separate control panel ; PLC control and human machine interface (English/Chinese) and manual button control as alternatiive.

07). Products’valves, filler head and other m oving parts have steam barrier for protection.

08). Keep the filling chamber sterilized all the time using steam protection.

09). CIP and auto SIP available together with sterilizer.

10). Easily adjustable with simple change parts according to the aseptic bag volume and size.

11). when shifting the aseptic bag or some thing wrong with the filler, the product wiH be auto backtracked into the butter tank before the UHT sterilizer.

Technical Parameters
Model
FM-AF-1
FM-AF-2
Capacity
3-4T/H
6-8T/H
Asetic bag size
1-220 liters (normal),1-1000 liter(optional)
Steam consumption
20kg/h
40kg/h
Compressed air consumption
0.3M3/min
0.3M3/min
Power
1kw/6.5kw with dynamic conveyor
13kw
Dimension
2300*2000*2500mm
3500*2000*2500mm

 Product Application

 This line suits for carrots, pumpkin processing. The final products types can be clear juice, cloudy juice, juice concentrate and fermented beverages; It can also produce pumpkin powder and carrot powder. The production line consists of washing machines, elevators, blanching machine, cut machine, crusher, pre-heater, beater, sterilization, filling machines, three-way four-stage evaporator and spray drying tower etc. The production line adopts advanced design and high degree of automation. The main equipments are manufactured by high-quality stainless steel and in full compliance with food processing hygiene requirements.

Product Advantages:
Processing capacity : 3 tons to 1,500 tons / day.

* Raw Material: carrots, pumpkins

* Final product: clear juice, cloudy juice, juice concentrate and fermented beverages

* To prevent browning by blanching

* Aging the soft tissue to increase juice yield

* Can get different tastes by dilution.

* High degree of automation of the entire line, without using a lot of manpower.

* Comes with cleaning system, easy to clean.

* System Material contact parts are 304 stainless steel, in full compliance with food hygiene and safety requirements.

Whatsapp/Wechat/Mobile: 008613681836263  Welcome any inquiry!

Main Features

we take advantages of the comprehensive and technical cooperation with the Italian company partner, now in fruit processing, cold breaking processing, multi effect energy saving concentrated, sleeve type sterilization and aseptic big bag canning has made domestic and unmatched technical superiority. We can provide the entire production line processing 500KG-1500 tons of raw fruit daily according to the customers.

Turnkey solution. No need worry if you know little about how to carry out the plant in your country.We not only offer the equipment to you,but also provide one-stop service, from your warehouse designing (water, electricity ,staff) , worker training, machine installation and debugging, life-long after-sale service etc.

Our company adheres to the purpose of “Quality and Service Branding”, after many years of efforts, has set a good image in the domestic ,due to superior price, and excellent service , at the same time, the company products are also widely infiltrated into Southeast Asia, Middle East, Africa, South America, Europe and many other overseas markets.

Final Products
Detailed Images

Spray cleaning machine

Main characteristic:
1 Used to wash freshGuava, tomato, strawberry, mango, etc.
2 Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well.
3 Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc.

Motor Power: 3KW

homogenizer

Applied to the refinement or emulsification of juice, jam, beverage.

With frequency conversion control and centralized control cabinet

Rated handling capacity 1T/H

CIP clean system

Semi-automatic cleaning system

Including acid tank ,base tank ,hot water tank, heat exchange system and controlsystems. Cleaning all the line.

Power:7.5KW

Tube in tube sterilizer

1. The united is consisted of product receiving tank, superheated water tank, pumps, product dual filter, tubular superheated water generate system, tube in tube heat exchanger, PLC control system, Control cabinet, steam inlet system, valves and sensors, etc.
2. Incorporated Italian technology and conform to Euro-standard
3. Great heat ex
