Automatic Milk Carton Filling Packaging Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Type:
Multi-Function Packaging Machine
Packaging Material:
Paper, plastic
Packaging Type:
Cartons, brick, top
Function:
Capping, FILLING, Sealing
Condition:
New
Application:
Beverage, Food, brick type, gable top caton
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V 50Hz
Power:
45KW
Place of Origin:
Shanghai, China
Brand Name:
JUMPFRUITS
Model Number:
JPAUT-6000
Dimension(L*W*H):
5.0m *1.6m *2.8m
Certification:
CE Certification
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
gable top carton filling machine
Main Function:
Aseptic Filling Sealing packaging
Machine type:
Full automatic
Usage:
milk , drink , beverage, juice, liquid
Bag type:
brick type, gable top caton
Packing material:
Plastic paper aluminum cartons
Packing speed:
1000ml-2000ml
Name:
liquid packaging machine
Film material:
Aluminum Plastic Film
Item:
Automatic Carton filling Machine
Supply Ability
Supply Ability:
10 Set/Sets per Month milk carton packing machine
Packaging & Delivery
Packaging Details
Wooden case with standard export package.If customer have specail requirement,we will do as customer require
Port
Shanghai Port
Lead Time :
60 days after receving the deposit
Product Description

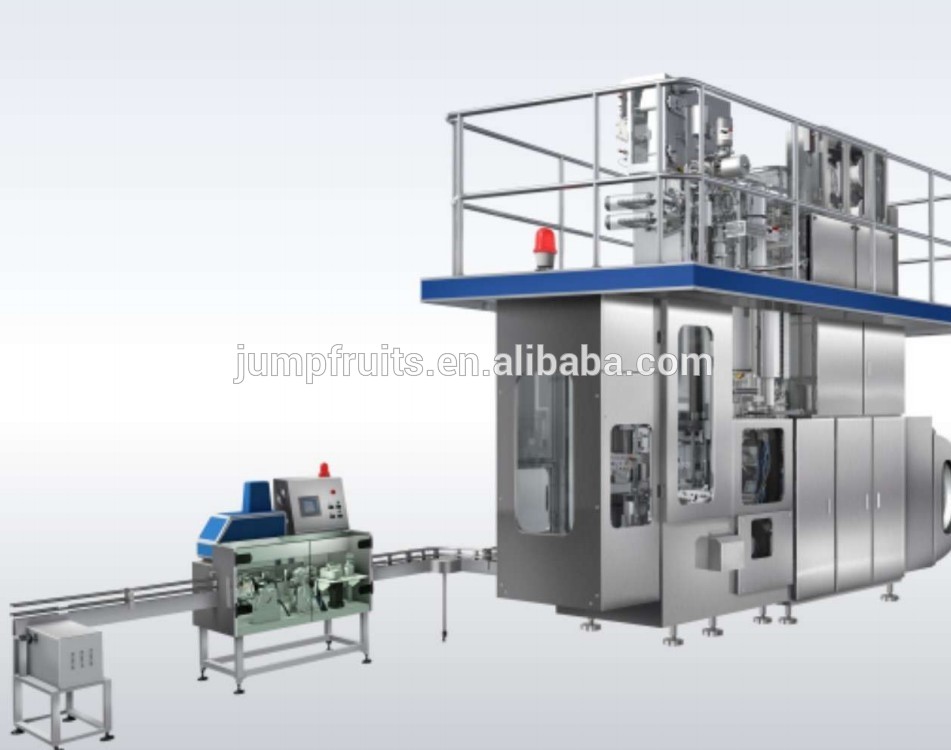

JPAUT-6000 type gable top carton (juice /milk/drink) filling machine

Work flow :
Put brick cardboard into carton holder (manually) → Bottom preforming → Bottom heating and sealing → Filling → Top preforming → Top sealing molding → ear heating → ear sealing→ Finished brisk carton product to warehouse
The whole process is controlled by PLC, and only need one person to operate.

2.  Suitable for filling:
Various kinds of dairy products, such as milk, yogurt, cream, soy been milk, beaten egg, etc.
Fruit juice drink, fruit vinegar drinks, , beverage, cereal drink, tea drink, , butter, wine, condiment, chemical liquid products etc liquid filling products.

3.  Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.

●  The machine is with carton lifting function to avoid foam forming and splashing when filling juice and milk.
●  The machine is made of food-grade stainless steel and the surface is special processed to be beautiful.

4.  Features:
● PLC control, only need one worker.
● Apply touch screen which shows relevant information for operator to make the operation easy.
● Automatically record the working status which can be long-term saved.
● Automatic lubrication.
● Automatically failure alarm, diagnosing

Whatsapp/Line/Wechat/Mobile: 008613681836263  Welcome any inquiry!

Technical parameter:

Name
JPAUTO-2500 Brick Type Filling Machine
Capacity
200-250ml / 500-1000ml /1000ml-2000ml (same bottom size brick can be filled by one machine, and can not add cap)
Output
 2500 cartons/hour for automatic filling machine
 1000 cartons/hour for manual filling machine
Packing material
brick aluminium foil carton
Filling temperature
hoting filling 85-88 degree centigrade
Overall power
45KW (three phases of electricity)
Shelf life
Depending on the product types and process
Compressed air pr essure
1.0-1.4 Mpa
 Flow rate
1.4-2M3/min, without oil, water and dust
Cooling water
Flow volume:≥40L/ min
  Temperature:
≤30℃
Size: (L*W*H)
5.0m *1.6m *2.8m
Net Weight
200—250ml type 3000kg
500—1000m type 3200kg
1000—2000m type 3500kg
Final Package
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory,pickup service.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
