800kg/h Automatic Peanut / Castor / Wheat Sheller Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Type:
peanut sheller machine
Use:
shelling
Production Capacity:
95%
Place of Origin:
China
Brand Name:
jumpfruits
Voltage:
220V
Dimension(L*W*H):
1400*500*1400mm
Weight:
200KG
Certification:
iso
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
peanut sheller machine
Function:
shelling
Application:
Peanuts processing
Raw material:
Carbond Steel
Capacity:
600-800kg/h
Feature:
High Shelling Rate
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai

Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 – 1 >1
Est. Time(days) 10 To be negotiated
Product Description

800kg/h automatic Peanut / Castor / wheat sheller machine

working principle:
Peanut is fed by hand and first falls into the thick text grid. Due to the force between the rotation of the plate and the concave plate of the fixed grid, the peanut kernel and the shell separated and separated from the shell are simultaneously dropped through the grid and then passed through the wind. It is said that most of the peanut shells are blown out by the wind, and the peanut kernels and a part of the peanuts that have not been peeled off fall into the specific gravity sorting sieve. After re-screening, the peanut kernels are separated from the sieve surface and flow into the sack through the material inlet. The peanuts (small fruit) that have not been peeled off are descended from the sieve surface, flow into the hoist through the discharge channel, and then sent to the fine grating by the hoist to be secondly husked, and then sieved by specific gravity. Achieve all stripping.

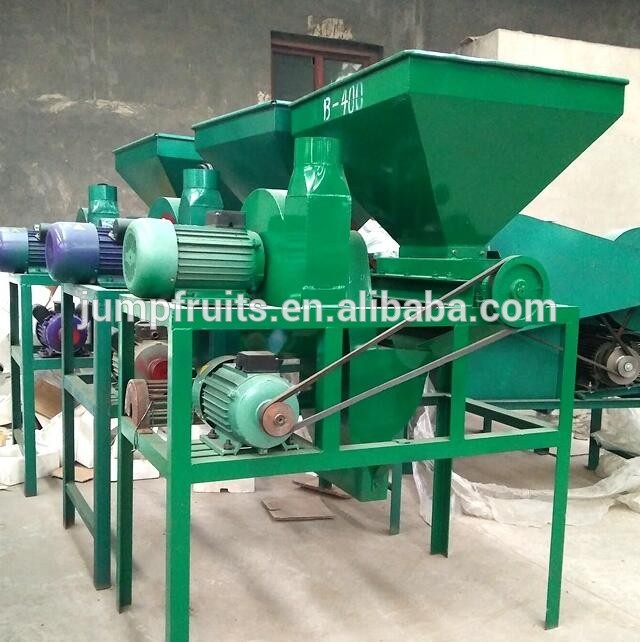

Structure:

The peanut shelling machine is composed of several parts such as a rod, a grid, a concave plate, a fan, a specific gravity sorting and a secondary lifting machine. The structure is simple and compact, simple in operation, stable in performance, safe and reliable.Applicable Scope:

Automativ Peanut sheller machine technical parameter
Model
PNS-500
Motor power
3KW
Motor
2800rmp
Production efficiency
600-800kg/h
Dimension
1400*500*1400mm
Weight
200kg
Machine material
Carbon Steel
Packing & Delivery
Packaging
Size
1400*500*1400mm
Weight
200KG
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company

Own tomato planting base in Xinjiang+Machinery processing line+15 years export experience+professional customerize service=your reliable business partner
1.Planting base in Xinjiang,producing tomato products(paste/powder,etc) in world top quality,with production capability of over 1000T/day
2.Factory of machinery and engineering vegetables and fruit paste processing,juice drink processing and fruit powder process etc.,absorbing world advanced technology.
3.15 years export experience, easily transport cargo to your door
4.customerized service, revise our products or OEM for your requirements

FAQ

1.What is the warranty period of the machine?
One year. Except the wearing parts, we will provide free maintenance service for the damaged parts caused by normal operation within warranty. This warranty does not cover wear and tear due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided.

2.What service can you provide before sales?
Firstly, we can supply the most suitable machine according to your capacity. Secondly, After getting your workshop dimension, we can design the workshop machine layout for you. Thirdly, we can provide technical support both before and after sales.

3.How can you guarantee the after sales service?
We can send engineers to guide the installation, commissioning, and training according to the service agreement we signed.
