Big Scale Small Scale Industrial Pasta Macaroni Production Line

Short Description:


Product Detail

Product Tags


Overview
Quick Details
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support
Type:
Noodle
Production Capacity:
0.2tons–1tons/hour
Place of Origin:
Shanghai, China
Brand Name:
JUMPFRUITS
Voltage:
380V/50HZ
Power:
240kw
Dimension(L*W*H):
40m*3m*3m
Weight:
10 tons
Certification:
ISO9001:2008
Warranty:
1 Year
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
5 years
Core Components:
Motor
Key Selling Points:
Competitive Price
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
Food Grade Stainless Steel 304
Capacity:
3-10 Tons /8h
Function:
Pasty Noodles
Usage:
Full-automatic
Raw material:
Wheat Flour
Supply Ability
Supply Ability:
10 Set/Sets per Month industrial pasta making machine
Packaging & Delivery
Packaging Details
1.Stable wooden package protects machine from strike and damage. 2.Wound plastic film keeps machine out of damp and corrosion.3.Fumigation-free package helps the smooth customs clearance.4.The big size machine will be fixed in container without package.
Port
Shanghai

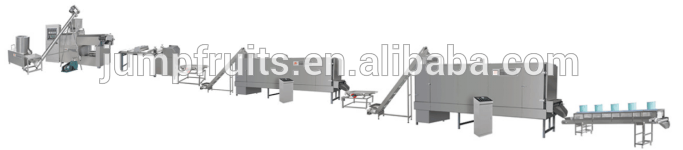

Automatic pasta production line

Equipment list:Mixer–Screw conveyor-DLG150 Extruder–Cutter–Flat conveyor–Hoister–Dyer–Hoister–Dryer–Cooling machine–Packing machine

1.Feeding System:Installed in the main machine, which feeds materials spirally, and the quantity can be adjusted. This system includes engine, screw, blender and machine shelf.
2.Extruding System:Adopts the crafts what can make the materials ripe in the low temperature by blending, cutting and extruding. Temperature control is set strictly on the roller and screw to reach criteria the materials require.
3. Cutting System:The shelf is fixed on the head of the moulds; and turns and cuts the materials motivated by the belt wheel.
4.Heating System:Divides five areas, and the heating temperature of which can be adjusted separately.
5.Transmitting System:The motive power from the main engine is transmitted to the screw through the triangle belt and decelerator.
6.Controlling System:Can control all the components of the main machine centrally.
7.Vacuum Pump.For the pasta and macaroni,the big problem is with bubbles and air inside.With the vacuum pump,which can extract air from feeding part,so there will be no any air and bubbles inside the pasta and macaroni,it will not easy broken and taste also very strong and good.

Mixer

Power:4kw
Dimension(m):1.05*0.8*1.4
Mixing time :3 minutes
Volume:40Kg/batch
Net weight:180kg
Stainless steel mixer shaft in the mixer tank to mix the raw material,water and other additives.

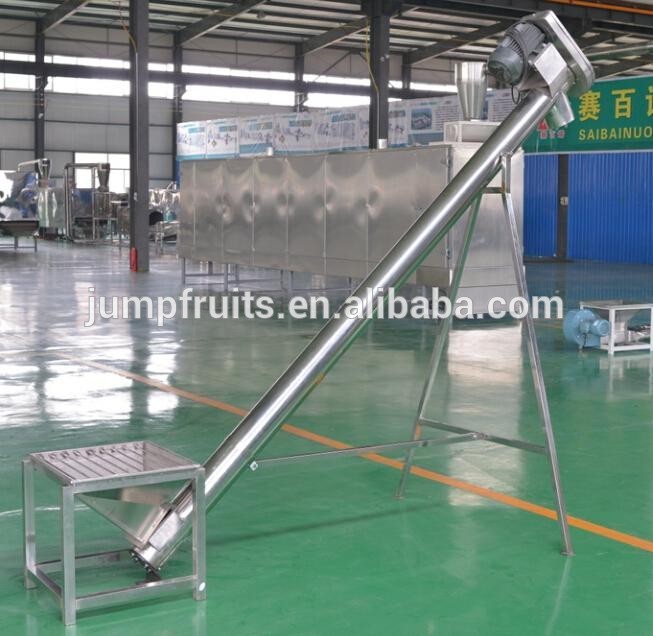

Screw conveyor

Power:1.1kw
Dimension(m):3.2*0.4*2.1
Net weight:100kg
The raw material can be conveyed in the stainless steel roller without any leaking, dust pollution to the extruder.

Extruder

Power:102kw
Dimension(m):3.9*1.15*1.9
Net weight:3200kg

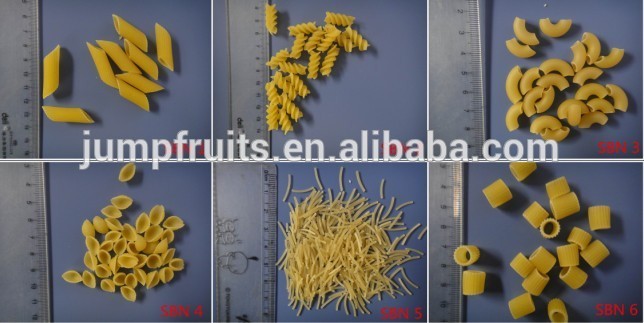

In the process of inflation, the materials in the sealed roller are pushed by the screw, getting the high pressure and the cutting force, While lowing the pressure of the materials next to the exit, plastic gel is extruded out and instantly cools and geometrical shapes, by means of changing the mould.Its shape can be spiral, shell, ring, pipe, square pipe and so on.

Hoister.

Power: 0.75kw
Dimension(m): 2.2*0.7*2.2
Net weight:77kg
Conveying the product to the 5 layer 5 meter oven.
