1000L Industrial Vacuum Dip Sugar Pot Pan For Candy And Pickles Production Line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
China
Brand Name:
Jumpfruits
Model Number:
ZKJT1000L
Voltage:
220v
Power:
7.5kw
Weight:
450kg
Dimension(L*W*H):
300*400*200mm
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Application:
candied / Dried fruit production line
Product name:
vacuum pan sugar
Material:
304 Stainless Steel
Type:
Fully Automatic
Function:
Suitable for quick pickling of various preserves, fruits and pickles
Color:
Silver
Size:
300*400*200mm
Machine name:
vacuum sugar cooking machine
Production Capacity:
1000L
Advantage:
Easy Operation High Efficiency
Supply Ability
Supply Ability:
10 Set/Sets per Month vacuum sugar cooking machine
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 – 1 >1
Est. Time(days) 40 To be negotiated
Product Description

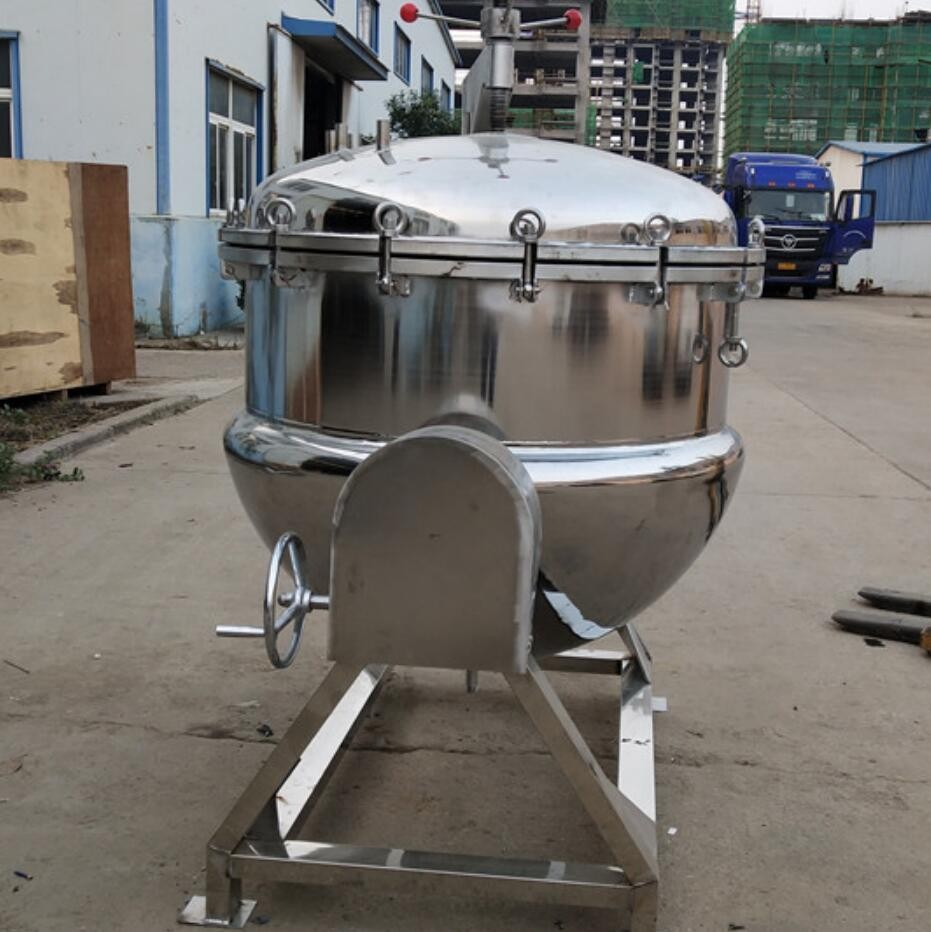

Industrial Candied vacuum dip in sugar pot

Equipment use:

Vacuum dip pan is widely used in the processing of various foods. It can also be used for concentration, soaking, evaporation, pickling, purification, etc. It is a good equipment for food processing to improve quality, shorten time and improve working conditions. It is suitable for quick pickling of various candied fruit, fruit soaked sugar and pickles. Such as: jujube, candied dates, hawthorn, blueberries, strawberries, apples, pears, peaches, etc. Quickly soaked sugar, pickles and snack food seasonings quickly pickled and tasted, according to the output can be equipped with empty tank specifications, the tank can be installed with heating interlayer, Installation temperature automatic control system; diameter of 900mm or more with pneumatic opening device.

Features:
1. Vacuum dip in a vacuum pot with a certain pressure of steam as a heat source (optional electric heating; natural steam, liquefied steam), vacuum dip sugar pot has large heating area, high thermal efficiency, uniform heating, short boiling time of liquid material, heating temperature Easy to control and other features.
2. The inner pot of the vacuum dip pan (inner pot) is made of acid-resistant and heat-resistant Austenitic stainless steel. It is equipped with a pressure gauge and a safety valve. It has beautiful appearance, easy installation, convenient operation, safety and reliability. This product uses advanced transmission and sealing structure to make the transmission part and the pot clean and hygienic.
3. The vacuum dip pan is made of acid-resistant and heat-resistant Austenitic stainless steel, which is beautiful in appearance, easy to install, convenient to work, safe and reliable.
4. It consists of a pot body and a foot. The pot body is a two-layer structure consisting of a hemispherical pot body + a straight side + a bracket inside and outside. (Adaptable according to customer requirements)
5, the unit can be vacuumed, heated, pressurized, insulated, a multi-purpose machine.
6, the emergence of vacuum dip sugar pot, no matter in time or efficiency has solved a lot of problems. The vacuum dip pan is made of steam with a certain pressure as the heat source. The vacuum dip pan has the characteristics of large heating area, high heat efficiency, uniform heating, short boiling time, easy control of heating temperature, convenient cleaning and high vacuum.

Equipment advantages:
1. Large concentration capacity: vacuum concentration process. It has 5-10 times higher productivity and 30% lower energy consumption than the old similar equipment, and has the characteristics of small investment and high recycling efficiency.
2. Evaporation speed: concentrated liquid material: This equipment adopts the combination of external heating natural circulation and vacuum negative pressure evaporation. The evaporation speed is fast, the liquid material is in a fully sealed state without foam concentration, and the liquid medicine concentrated by the equipment is used. It has the characteristics of no pollution and strong medicinal taste.
3. Easy to clean: Open the upper and lower covers of the heater to clean. The device is easy to operate and has a small footprint.

SPECIFICATIONS FOR Candied vacuum dip in sugar pot
Model
JPJT1000L
Pot volume
1000L
Pot dimension
1900*1700*1800mm
Inner diameter of the pot
1200mm
height of the pot
800mm
thickness of the pot
5mm
Material of the pot
 sus304
Voltage
220V
Heating type
steam heating
Open cover form
Cylinder control automatic opening
Main products
Our Main Business Products
1
Tomato paste / puree / jam / concentrate, ketchup, chilli sauce , other fruit & vegetables sauce / jam processing line
2
Fruit & vegetables ( orange , guava, cirtrus, grape, pinapple, cherry, mango, apricot.etc. ) juice and pulp processing line
3
Pure, mineral water, Mixed beverage, drink (soda, Cola, Sprite, carbonated beverage, no gas fruit drink, herbal blend drink, beer,cider,  fruit wine .etc. ) production line
4
Canned fruit & vegetables ( tomato, cherry, beans, mushuroom, yellow peach, olives, cucumber, pineapple, mango, chili, pickles and so on. ) production line
5
Dried fruit & vegetables ( dried mango, apricot, pineapple, raisin, blueberry .etc. ) production line
6
Dairy (UHT milk, pasteurized milk, cheese, butter, yogurt, milk powder, margarine, ice cream)production line
7
Fruit and vegetable powder (Tomato, pumpkin, cassava powder, strawberry powder, blueberry powder, bean powder, etc. ) production line
8
Leisure snack (Dried freeze-dried fruit, puffed food, french fried potato chips, etc. ) production line
If you are interested in our production machine, pls contact Nina by

Mobile / WeChat / WhatsApp /Skype:   +8613681836263
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory,pickup service.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1.What is the warranty period of the machine?
One year. Except the wearing parts, we will provide free maintenance service for the damaged parts caused by normal operation within warranty. This warranty does not cover wear and tear due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided.

2.What service can you provide before sales?
Firstly, we can supply the most suitable machine according to your capacity. Secondly, After getting your workshop dimension, we can design the workshop machine layout for you. Thirdly, we can provide technical support both before and after sales.

3.How can you guarantee the after sales service?
We can send engineers to guide the installation, commissioning, and training according to the service agreement we signed.
